Tp-link MR70X

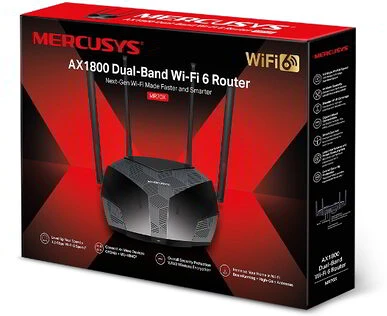

Mercusys ax1800 dual-band wi-fi 6 router

AX1800 Dual-Band Wi-Fi 6 Router

MR70X AX1800 Dual-Band WiFi 6 Router

• Next-Gen WiFi 6 Speeds – Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)

• 4× More Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
• Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
• Overall Security Protection – The latest WPA3 provides improved WiFi security
• Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
• Eco-Friendly Power Saving – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
• Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
• Smart Connect – Intelligently chooses the best available band for each device
• Access Point Mode – Extends a wired network and makes it wireless

WirelessWireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds

1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm

Transmission Power

2.4 GHz 5 GHz Wireless Security

WPA-PSK / WPA2-PSK/ WPA3 wireless encryption

Wireless Functions

Enable/Disable Wireless Radio, WMM

SoftwareWAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control
Local Management
Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

VPN Passthrough

OpenVPN, PPTP supported

HardwareDimensions

8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm)

Interfaces

1× Gigabit WAN Port + 3× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

OthersPackage Contents

• AX1800 Wi-Fi 6 Router MR70X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
