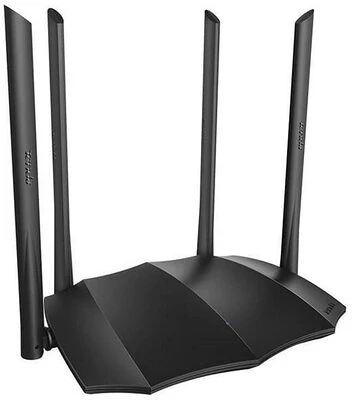

Tenda AC8
Dual-band ac1200 gigabit wireless router

AC8 is a dual band gigabit wireless router specially designed for family with fibre access.Equipped with gigabit ports to support up to 1000 Mbps bandwidth access. The dual band provide 1167Mbps frequency, fully utilise the gigabit fibre.This router is equipped with 28nm 1 GHz CPU to provide better performance. The integrated dual-band technology combines both 2.4GHz and 5GHz under one Wi-Fi name; The 5GHz frequency band is set as priority and faster signal frequency would be allocated to you automatically by our dynamic optimization system. New designed 6 dBi antennas,meet the coverage requirement for small and medium household. AC8 also support broadband account automatic transfer and other features.

Standard&Protocol

IEEE802.3，IEEE802.3u，IEEE802.3ab

Interface

1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports

Antenna

4*6dBi external dual band antennas

Button

1*WPS/Reset button

Power

Input：AC 100-240V—50/60Hz
Output：DC 9V 1A

LED indicator

1*LED

Dimension

200x127x33.6mm(L*W*H)

Wireless Standards

IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

Data Rate

2.4GHz: 300Mbps
5GHz: 867Mbps

Frequency

2.4GHz & 5GHz

Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security : Enable /Disable

Internet Connection Type

PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer

Operating Mode

Wireless Router Mode
AP Mode
Universal Repeater mode
WISP Mode

DHCP

DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server

Port Forwaring
DMZ Host
UPnP

Security

Client Filter（supports black list and white list）
Parental Control（supports black list and white list）
Remote Web Management

Firewall

Forbid WAN PING from internet

DDNS

Support DynDNS, 88ip

Other Function

Broadband management
MAC address clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade from local

Temperature

Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.

Humidity

Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings

Default Access: tendawifi.com or
