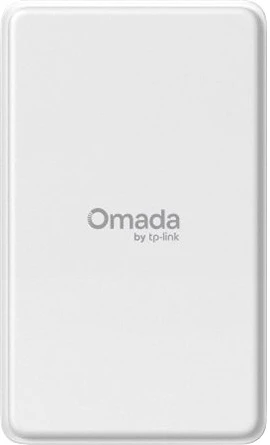

Tp-link ER701-5G-OUTDOOR
Omada kültéri wi-fi poe 5g/nr vpn router

150Mb/s, IEEE 802.11b/g/n (Wi-Fi 4), LAN (2,5Gb/s): 1 port, USB-C: 1db, SIM kártya foglalat, 5G/NR, antennák száma: 10db, menedzselhető, VPN csatornák száma: 500000db, energiafelhasználás: 15,3W, fehér, IP66150Mb/s, IEEE 802.11b/g/n (Wi-Fi 4), LAN (2,5Gb/s): 1 port, USB-C: 1db, SIM kártya foglalat, 5G/NR, antennák száma: 10db, menedzselhető, VPN csatornák száma: 500000db, energiafelhasználás: 15,3W, fehér, IP66Garancia: 5 Év

5G/4G/3G
Network Mode	• 5G NR:N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/ N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/150 0/1450/3700/3500 MHz) § • 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/26 00/900/800/850/700/1500 MHz) § 4G TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) • 3G WCDMA: B1/B5/B8 (2100/850/900 MHz)
Speed	5G NR Speed • SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps • NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps LTE Speed • Downlink: 1.6 Gbps, Uplink: 211 Mbps
SIM Type	Dual Nano SIM

SECURITY
DPI	Deep Packet Inspection
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering (only in Standalone Mode) • URL Filtering • Web Security (only in Standalone Mode)
ARP Inspection	• Sending GARP Packets • ARP Scanning (only in Standalone Mode) • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Interface	1×2.5G RJ45 Port
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	• 802.3at PoE: 42-57V 0.6A • Passive PoE: 48V 0.375A
Flash	4GB eMMC Flash
DRAM	2GB LPDDR4x
LED	System, Network Type, Signal Strength
Dimensions ( W x D x H )	7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm)
Antenna	• 9× internal Cellular antennas • 1× internal Wi-Fi antenna
SIM Slot	1×Dual Nano SIM slot
Mounting	Wall/Pole/Window Mounting
Max. Power Consumption	15.3W (802.3at PoE or Passive PoE)

PERFORMANCE
Concurrent Session	500, 000
New Sessions /Second	6,100

WIRELESS FEATURES
Wireless Speeds	2.4 GHz: 150 Mbps ?
Wireless	• 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps
Advanced Features	• Wireless Encryption: WPA/WPA2 Personal • SSID: 1 • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Automatic Channel Selection Algorithm • Transmit Power Control: Adjust transmit Power on dBm

BASIC FUNCTIONS
WAN Connection Type	5G/4G/3G
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
Stateful ACL	Yes
Quality of Service	Yes
Bridge VLAN	Yes
SMS	Receive / Send SMS
VLAN	802.1Q VLAN
