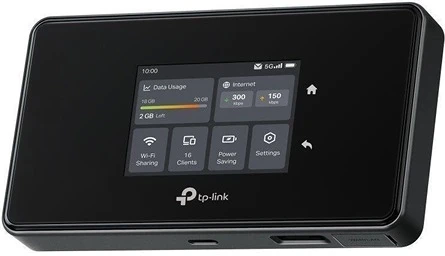

Tp-link M8550
Mobile axe3600 dual-band wi-fi 5g/nr router

3600Mb/s, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E), WAN (1Gb/s): 1 port, LAN (1Gb/s): 1 port, USB-C: 1db, SIM kártya foglalat, 5G/NR, energiafelhasználás: 15W, akkumulátoros működés, fekete, microSD, 4680mAh3600Mb/s, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E), WAN (1Gb/s): 1 port, LAN (1Gb/s): 1 port, USB-C: 1db, SIM kártya foglalat, 5G/NR, energiafelhasználás: 15W, akkumulátoros működés, fekete, microSD, 4680mAhGarancia: 2 Év

HARDWARE FEATURES
Interface	1× USB-C Port for Power Supply 1× Gigabit WAN/LAN Port 1× Nano SIM Card Slot 1× Micro SD Card Slot 2× TS-9 Antenna Ports
Button	Power On/Off
Power Supply	4680 mAh Rechargeable Battery Charge Voltage: 5V-3A, 9V-2A, 12V-1.5A
Network Type	US Version • 5G: N2/N5/N12/N14/N25/N29/N30/N41/N48/N66/N71/N77 • 4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 TDD-LTE: B41/B46/B48
Data Rates	5G • Downlink: 3.4 Gbps • Uplink: 900 Mbps LTE/4G • Downlink: 1.6 Gbps • Uplink: 200 Mbps
Dimensions ( W x D x H )	135 × 73.7 × 20.5 mm
Antenna	Internal Antenna
Micro SD Card Reader	Up to 2 TB (*SD card sold separately)
Screen Display	2.4 inch TFT Touch Screen

WIRELESS FEATURES
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax • 688 Mbps at 2.4 GHz • 2880 Mbps at 5 GHz • 2880 Mbps at 6 GHz
Frequency	2.4 GHz, 5 GHz, 6 GHz
Wireless Modes	• 2.4 GHz Only • 5 GHz Only • 6 GHz Only • 2.4 GHz & 5 GHz • 2.4 GHz & 6 GHz
Wireless Security	Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering
DHCP	DHCP server, DHCP Client List
Transmission Power	2.4G < 20dbm, 5G < 23dbm

VPN
VPN Item	Wireguard

OTHERS
Network Services Enabled by Default	Web Server Manage and configure device through web • Port: 80/443   Protocol: HTTP/HTTPS DNS DNS • Port: 53; Protocol: UDP DHCP Server IP address assignment • Port: 67/547; Protocol: DHCP/DHCPv6 SSH for app Manage and configure device through app • Port: 20001   Protocol: SSH Tmpd for app Manage and configure device through app • Port: 20002; Protocol: Tmpd
Certification	CE, RoHS
Package Content	5G AXE3600 Mobile Router M8550 Power Adapter USB-C Cable 4680 mAh Battery Quick Installation Guide
System Requirements	Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
