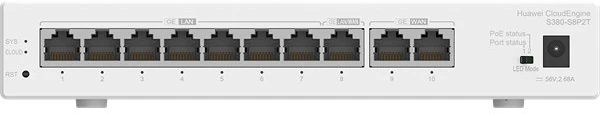

Huawei 2X1000MBPS
Ekit engine gateway s380-s8p2t poe router

WAN (1Gb/s): 2 port, LAN (1Gb/s): 8 port, fehérWAN (1Gb/s): 2 port, LAN (1Gb/s): 8 port, fehérGarancia: 3 Év

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)
Chassis height [U]	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging [kg(lb)]	1.5 (3.31)
Weight with packaging [kg(lb)]	1.8 (3.97)
Typical power consumption [W]	12.4
Typical heat dissipation [BTU/hour]	42.3
Maximum power consumption [W]	145.8 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour]	497.5
Static power consumption [W]	7.53
100% power consumption [W]	12.52
MTBF [year]	65.36
MTTR [hour]	2
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at high temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	10
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	10
Maximum number of FE ports	10
Dedicated stack port	Not supported
