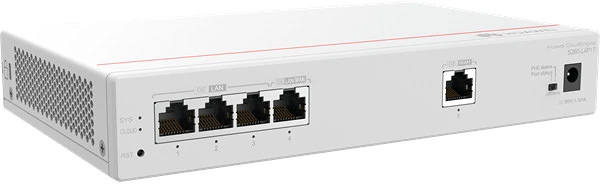

Huawei 1X1000MBPS
Ekit engine gateway s380-l4p1t poe router

WAN (1Gb/s): 1 port, LAN (1Gb/s): 4 port, fehérWAN (1Gb/s): 1 port, LAN (1Gb/s): 4 port, fehérGarancia: 3 Év

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)
Chassis height [U]	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging [kg(lb)]	0.9 (1.98)
Weight with packaging [kg(lb)]	1.1 (2.43)
Typical power consumption [W]	7.19
Typical heat dissipation [BTU/hour]	24.5
Maximum power consumption [W]	61.65 W (PoE: 50 W)
Maximum heat dissipation [BTU/hour]	210.4
Static power consumption [W]	4.54
100% power consumption [W]	7.35
MTBF [year]	75.89
MTTR [hour]	2
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at high temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	5
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	5
Maximum number of FE ports	5
Dedicated stack port	Not supported
