Tp-link VIGIC340I-4
Vigi c340i (4mm) 4mp outdoor bullet network camera -

4MPOutdoorBulletNetworkCamera SPEC:H.265+/H.265/H.264+/H.264,1/3"ProgressiveScanCMOS,Color/0.1Lux@F2.0,0LuxwithIR,25fps/30fps(2560x1440,2304x1296,2048x1280,1920x1080,1280x720),PoE/12VDC,4FixedLens FEATURE:SmartDetection(Human&VehicleClassification)(MotionDetection,AreaIntrusionDetection,Line-CrossingDetection,CameraTamperingDetection,AbandonedObjectDetection,ObjectRemovalDetection,AreaEntranceDetection,AreaExitingDetection,VehicleDetection,Humandetection),SmartVid(SmartIR,DWDR,3DDNR,BLC),IRNightVision(Upto30m),IP67,ONVIF,RemoteMonitoring,VIGIApp,Web,VIGISecurityManager

VIGI C340I

New

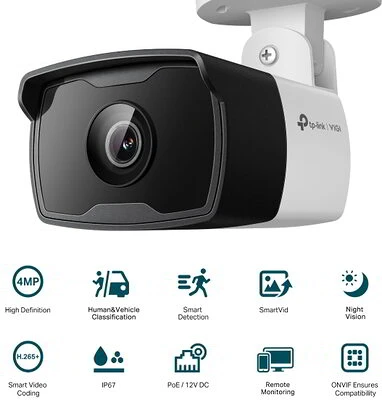

VIGI 4MP Outdoor IR Bullet Network Camera

• 4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
• Smart Video Enhancement : VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Waterproof: Reliable IP67 for stable outdoor performance.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
• Flexible Management : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Lens	2.8 mm/ 4 mm/ 6 mm
Aperture	2.8 mm: F2.2 4 mm: F2.2 6 mm: F2.0
Lens Mount	M12
Viewing Angle	2.8mm: 88.8°/48.9°/106.5°(H/V/D) 4mm: 75.1°/41.5°/88.7°(H/V/D) 6mm: 47.7°/26.5°/56°(H/V/D)
Day/Night Mechanism	IR Cut Filter
IR Working Distance	30m
Minimum Illumination	Color: 0.1 Lux; 0 Lux with IR
Weatherproof Rating	IP67
Digital Noise Reduction	3D DNR
WDR	DWDR

NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web

GENERAL
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Operating Temperature	-30–60 °C
Certifications	CE/BSMI/VCCI/ONVIF
Dimensions( H X W X D )	174 × 74 × 71 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Power Consumption	12V DC: Max 5W PoE: Class 0

VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240
Max. Resolution	4MP (2560 × 1440)
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule

SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Button	-
Video Output	-
