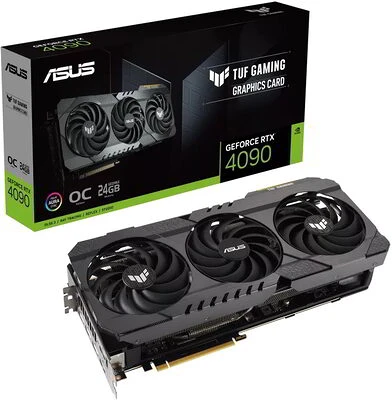

Asus TUF-RTX4090-O24G-OG-GAMING
Asus nvidia rtx 4090 24gb gddr6x - tuf-rtx4090-o24g-og-gaming

ASUS TUF Gaming GeForce RTX™ 4090 24GB GDDR6X OG OC Edition with DLSS 3, lower temps, and enhanced durability

• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
• 4th Generation Tensor Cores:  Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores:  Up to 2X ray tracing performance
• OC edition: 2595   MHz (OC mode)/ 2565   MHz (Default mode )
• Axial-tech fan  design has been tuned with a reversed central fan direction for less turbulence
• Dual ball fan bearings  last up to twice as long as conventional designs
• Military-grade capacitors  rated for 20K hours at 105C make the GPU power rail more durable
• Auto-Extreme  precision automated manufacturing for higher reliability
• GPU Tweak III  software provides intuitive performance tweaking, thermal controls, and system monitoring

Model

TUF-RTX4090-O24G-OG-GAMING

Graphic Engine

NVIDIA® GeForce RTX™ 4090

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

24GB GDDR6X

Engine Clock

OC mode: 2595MHz (Boost clock)
Default mode: 2565MHz (Boost clock)

CUDA Core

16384

Memory Speed

21 Gbps

Memory Interface

384-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Collection Card​
1 x Speedsetup Manual​
1 x Adapter Cable​
1 x Thank you Card
1 x TUF Velcro Hook & Loop

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

325.9 x 140.2 x 62.8 mm
12.83 x 5.52 x 2.47 inches

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

3.2 Slot

AURA SYNC

ARGB

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
