| Leírás | |
| The Polaris Series brings CHIEFTEC's trusted and proven experience with high-quality fully modular power supplies back to the forefront of modern technology. Polaris Series PSU's outstanding technical design including LLC half-bridge converter with DC-to-DC technology, as well as high-power density to allow higher efficiency and power output with a more compact size. | |
| Fő értékesítési szempontok | |
| |
| Termék: | |

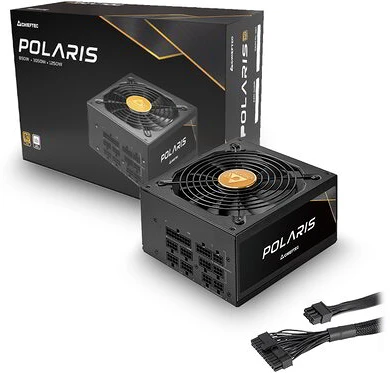

| Termék neve: | CHIEFTEC Polaris 850W 80 Plus GOLD Full Modular ATX 12V |
| Leírás: | Chieftec Polaris Series - Power supply (internal) - ATX12V 2.3/ EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC |
| EAN: | 0753263077356 |
| Gyártói garancia: | 36 hónap garancia |
| General | |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 2.3/ EPS12V |
| PSU Form Factor: | ATX |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 50 - 60 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 4 x 4 PIN internal power 12 x 15 pin Serial ATA power 1 x 4 PIN mini-power connector |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 850 Watt |
| Output Current: | +5V - 22 A +3.3V - 22 A +12V1 - 70.8 A +5VSB - 3 A -12V - 0.3 A |
| Power Factor (PF): | 0.9 |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Cooling System: | 140 mm fan |
| Features: | Overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP), LLC Half Bridge Topology |
| Compliant Standards: | CB, FCC, RoHS, WEEE, ErP Ready, EAC, Interseroh, TUV Rheinland |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 16 cm |
| Height: | 8.6 cm |
| Weight: | 2.6 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 3.3 kg |
A műszaki adatokat harmadik fél bocsátja rendelkezésünkre tájékoztatási céllal. Az esetleg előforduló tartalmi hibákért nem tudunk felelősséget vállalni.
A műszaki adatokat a CNET Content Solution bocsátotta rendelkezésre
