ventilátor mérete: 80mm, PFC: aktív, 90%, moduláris kábelek, full Range, 4+4-pin tápcsatlakozó: 1db, 6+2-pin VGA csatlakozó: 2db, SATA tápcsatlakozó: 6db, feketeventilátor mérete: 80mm, PFC: aktív, 90%, moduláris kábelek, full Range, 4+4-pin tápcsatlakozó: 1db, 6+2-pin VGA csatlakozó: 2db, SATA tápcsatlakozó: 6db, feketeGarancia: 2 Év

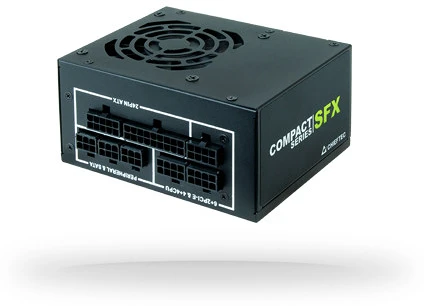

| Model | COMPACT 450W |
| Article no. | CSN-450C |
| EAN code | 4710713235755 |
| Weight (without/with package) | 1.5 kg / 1.97 kg |
| AC Input | 100 - 240V / 6A |
| Frequency | 47 - 63Hz |
| +5V | 15A |
| +3,3V | 18A |
| +5V & +3,3V combined | 90W |
| +12V1 | 37.5A |
| +12V2 | - |
| +12V1, +12V2 combined | 450W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3,0A / 15W |
| Maximum Power | 450W |
| 20+4 PIN ATX | 1 |
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 450 |
| 8 PIN EPS(4+4) | 450 |
| 8 PIN PCIe (6+2) | 2x450 |
| SATA | 2x 450/150/150 |
| MOLEX/FLOPPY | 450/150/150/150 |
| ATX12V Version | ATX 12V 2.3 |
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 100 mm x 125 mm x 64 mm |
| PFC | Active PFC (0,9) |
| Fan | 80mm silent fan |
| Security | AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection) |
| Warranty | 24 Months |
