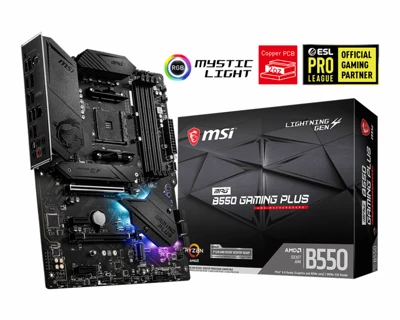

Msi MPG B550 GAMING PLUS

Msi MPG B550 GAMING PLUS
Javított oem

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
    • 1DPC 1R max speed 4400 MHz
    • 1DPC 2R max speed 3866 MHz
    • 2DPC 1R max speed 4000 MHz
    • 2DPC 2R max speed 3600 MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOTS

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
• 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
• 2x PCIe 3.0 x1 slots

1. The supported specification depends on installed processor.
2. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

ONBOARD GRAPHICS

• 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
• Maximum shared memory of 16 GB

1. Available for the processor with integrated graphics.

MULTI-GPU

• Supports 2-Way AMD CrossFire™ Technology

STORAGE

AMD B550 Chipset

• 6x SATA 6Gb/s ports
• 2x M.2 slots (Key M)
  • M2_1 slot (from AMD Processor)
    • Supports PCIe 4.0/ 3.0 x4 1
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD B550 chipset)
    • Supports PCIe 3.0x4
    • Supports 2242/ 2260/ 2280 storage devices

1. The supported specification depends on installed processor.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek ® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek ® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1xTPM module connector
• 1x Clear CMOS jumper

BACK PANEL PORTS

1. PS/2 Combo Port
2. DisplayPort
3. LAN Port
4. USB 3.2 Gen 2 10Gbps (Type-A)
5. HD Audio Connectors
6. Flash BIOS Button
7. USB 2.0
8. HDMI
9. USB 2.0
10. USB 3.2 Gen 1 5Gbps (Type-A)
11. USB 3.2 Gen 2 10Gbps (Type-C)
12. Optical S/PDIF OUT

LED FEATURES

• 1x EZ LED Control switch
• 4x EZ Debug LED

I/O CONTROLLER

NUVOTON NCT6687-R Controller Chip

HARDWARE MONITOR

• CPU/ System/ Chipset temperature detection
• CPU/ System/ Pump fan speed detection
• CPU/ System/ Pump fan speed control

DIMENSIONS

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes
