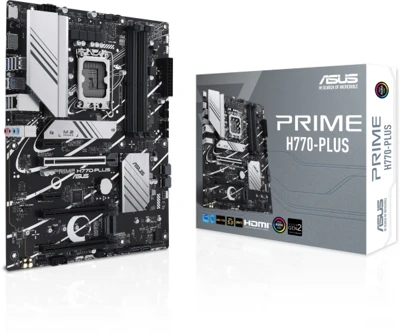

Asus PRIME H770-PLUS

Asus PRIME H770-PLUS
H770 s1700 4xddr5 4xsata3 3xm.2 4xpcie 2.5gbit lan atx

Model

PRIME H770-PLUS

CPU

Intel ® Socket LGA1700 for 13 th Gen Intel ® Core™ & 12 th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors*
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel ® H770 Chipset

Memory

4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
