| Chip gyártó | Intel |
| Processzor foglalat | Socket 1700 |
| Chipset | Z790 |
| Memória foglalat | 4 x DDR5 |
| Max. Memória sebesség | 7800 MHz |
| Max Memória | 128 GB |
| Alaplap méret | ATX |
| PCI-E | 3 |
| PCI-E 1x | 1 |
| HDMI | 1 |
| Display Port | 1 |
| AUDIO | 7.1 |
| LAN | 2,5 Gigabit |
| RAID | Igen |
| SATA 3 | 4 |
| M.2 | 5 |
| SPDIF | 1 |
| Wi-fi | Igen |

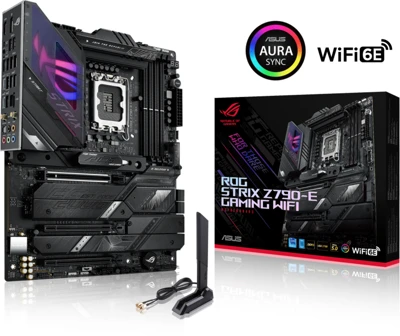

ROG STRIX Z790-E GAMING WIFI
CPU
Intel ® Socket LGA1700 for 13th Gen Intel ® Core™ Processors & 12th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors*
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel ® Z790 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
**** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI ® port***
* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel ® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel ® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table
on the support site (
