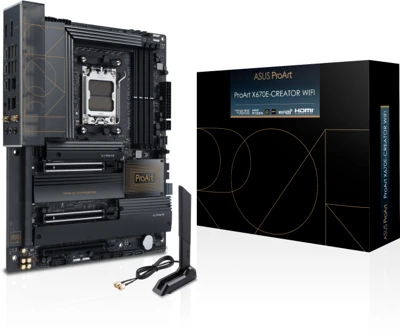

Asus PROART X670E-CREATOR WIFI
Sam5

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.

Graphics

1 x HDMI ® port**

2 x USB4 ® ports support USB Type-C ® display outputs***

* Graphics specifications may vary between CPU types.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C ® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.

1 x HDMI ® port**

2 x USB4 ® ports support USB Type-C ® display outputs***

* Graphics specifications may vary between CPU types.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C ® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x2 mode)**

* Please check the PCIe bifurcation table in support site (
