| 65TR3DK-BG |

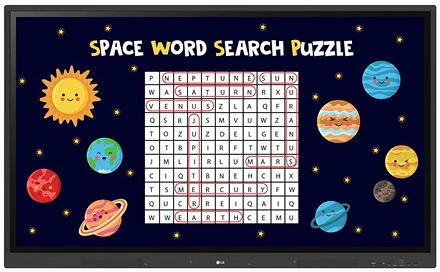

| LG CreateBoard |
| |
| |
|
| |
| Tech Spec |
| |
| Panel |
| |
- Screen Size: 65"
- Panel Technology: VA
- Back Light Type: Direct
- Aspect Ratio: 16 : 9
- Native Resolution: 3,840 × 2,160 (UHD)
- Refresh Rate: 60 Hz
- Brightness: 440 nit (w/o Glass Max.), 390 nit (w/o Glass Typ.)
- Contrast Ratio: 1,200 : 1
- Color gamut: NTSC 72%
- Viewing Angle (H x V): 178 × 178
- Color Depth: 10 bit (8 bit + FRC)
- Response Time: 8 ms
- Surface Treatment (Haze): 25%
- Lifetime: 50,000hrs (L30)
- Operation Hours (Hours / Days): 16 / 7
- Portrait / Landscape: No / Yes
.
|
| |
| |
| Mechanical Specification |
| |
- Bezel Color: Black
- Bezel Width (T / R / L / B): 15 / 15 / 15 / 44 mm
- Weight (Head): 35.0 kg
- Packed Weight: 44.7 kg
- Monitor Dimensions (W × H × D): 1,488.4 × 896.6 × 87.2 mm
- Carton Dimensions (W × H × D) (Box Outer Size): 1,628 ×1,005× 208 mm
- Handle: Yes
- VESA™ Standard Mount Interface: 600 × 400 mm
.
|
| |
| |
| Environment Conditions |
| |
- Operation Temperature: 0 to 40°C
- Operation Humidity: 10% to 90% RH
.
|
| |
| |
| Power |
| |
- Power Supply: 100-240 V ~, 50/60 Hz, 4.0 A
- Power Type: Built-In Power
.
|
| |
| |
| Power Consumption |
| |
- Typ./Max.: 220 / 420 W
- DPM: 0.5 W↓
- Power off: 0.5 W↓
- BTU (British Thermal Unit): 751 BTU/Hr (Typ.), 1,433 BTU/Hr (Max.)
.
|
| |
| |
| Certification |
| |
- Safety: CB / NRTL
- EMC: FCC Class "A" / CE / KC
- ErP / Energy Star: Yes / Yes
.
|
| |
| |
| OPS Compatibility |
| |
- OPS Type Compatible: Yes (Slot)
- OPS Power Built In: Yes
.
|
| |
| |
| Software Compatibility |
| |
- LG ConnectedCare: Yes
- LG ConnectedCare DMS: Yes
.
|
| |
| Connectivity |
| |
- Input: HDMI (3, HDCP 2.2), RGB (VGA), Audio In, RS-232C In, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A, USB Type C (USB-PD, DP-Alt)
- Output: HDMI Out, Audio Out (1, Optical 1 (SPDIF)), Touch USB (2), RJ45 (LAN)
.
|
| |
| |
| Sound |
| |
|
| |
| |
| Language |
| |
- English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues (Europe), Portugues (Brazil), Romanian, Spanish, Swedish, Hungarian, Thai
.
|
| |
| |
| Accessory |
| |
- Basic: Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, HDMI Cable (3 M × 1), Writing Pen × 2 Pcs, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
.
|
| |
| |
| Touch |
| |
- Available Object Size for Touch: O2 mm↑
- Response Time: ≤5 ms
- Accuracy: ±1 mm
- Interface: USB 2.0
- Protection Glass Thickness: 3 T (Anti-Glare)
- Protection Glass Transmission: 88%
- Operating System Support: Windows 7 / 8 / 10 / Linux / Mac / Android (Supports one point touch on Linux / Mac)
- Multi Touch Point: Max. 40 Points
.
|
| |
| |
| Android System |
| |
- SoC: Quad Core A55
- GPU: Mali G52MP2
- Internal Memory: 32 GB
- RAM: 4 GB
- Wi-Fi: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- LAN: Gigabit LAN
- Bluetooth: Bluetooth 5.0
.
|
| |
| |
| Key Feature |
| |
- Internal Memory (32 GB), Built-In Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, webOS ver. (Android 11.0), Background Image (Booting Logo Image), Multi-screen (PIP / PBP, External Source), Screen Share (LG CreateBoard Share), Power (Smart Energy Saving, Wake on LAN)
.
|
| |
