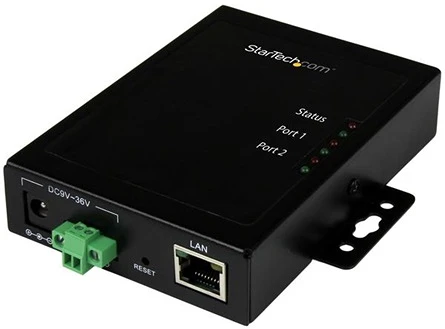

Startech NETRS2322P
2-port serial device server

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.

Flexible installation, in a range of environments

If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.

Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.

Backup power keeps your devices connected

With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.

Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.

Hardware
Industry Standards	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Interface	Serial
Ports	2
Performance
Auto MDIX	Yes
Auto-Negotiation	Yes
Compatible Networks	10/100 Mbps
Data Bits	7, 8
Flow Control	XON/XOFF, RTS/CTS, None
Full Duplex Support	Yes
Isolation	2500 Vrms
Max Baud Rate	460.8 Kbps
Parity	None, Even, Odd, Space, Mark
Remote Management Ability	Yes
Serial Protocol	RS-232
Supported Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet
Surge Protection	ESD (Electrostatic Discharge) Protection: 15kV Human Body Model (HBM) 15kV IEC1000-4-2 Air 8kV IEC1000-4-2 Contact
Connector(s)
Connector Type(s)	2 - DB-9 (9 pin; D-Sub) Male
	1 - RJ-45 Female
	1 - Terminal Block (2 Wire)
