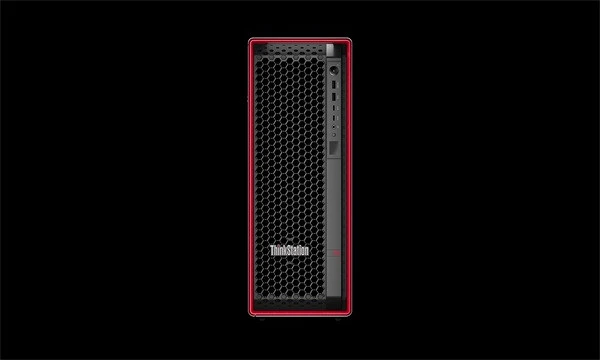

Lenovo 30GA002JHX
Thinkstation p5 munkaállomás

Intel® Xeon® w5-2455X, 12C (12P + 0E) / 24T, 3.2 / 4.6GHz, 30MB

1x FCLGA4677

1x NVIDIA® RTX A2000 12GB

Intel® W790 Chipset

2x 16GB RDIMM DDR5-4800 ECC

8 DDR5 DIMM slots, 4 channels capable

Up to 512GB (8x 64GB RDIMM)

Integrated NVMe® Controller, non-RAID

1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal

Onboard Intel® RSTe SATA

None

Up to ten drives (3x 3.5" SATA HDD + 7x M.2 SSD) • 3.5" HDD up to 12TB each • M.2 SSD up to 4TB or 2TB each (see Storage Type)

High Definition (HD) Audio, Realtek® ALC897-Q codec

750W Platinum Fixed

USB Traditional Keyboard, Black, Hungarian

USB Calliope Mouse, Black

Supports 6 PCIe® slots with 2x PCIe 5.0 slots and 4x PCIe 4.0 slots. • Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU • Slot 2: PCIe 4.0 x4, full height, full length, 25W, by PCH • Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU • Slot 4: PCIe 4.0 x4, full height, full length, 25W, by PCH • Slot 5: PCIe 4.0 x8, full height, full length, 25W, by CPU • Slot 6: PCIe 4.0 x4, full height, full length, 25W, by PCH

Three internal disk bays plus one front access M.2 bay: • Bay 1 supports one 3.5" HDD, standard • Bay 2 supports one 3.5" HDD, standard • Bay 3 supports one 3.5" HDD, optional • Front access M.2 bay supports one M.2 SSD, optional

165 x 453.9 x 446 mm (6.5 x 17.9 x 17.6 inches, with feet)

19 kg (41.9 lbs, maximum configuration)

Intel® I219-LM, 1x GbE RJ-45

None

None

15-in-1 Card Reader

1x headphone / microphone combo jack (3.5mm)

• 2x USB-C® 3.2 Gen 2
• 2x USB 3.2 Gen 2

• 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
• 2x USB-A (Hi-Speed USB / USB 2.0)
• 3x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x Ethernet (GbE RJ-45)
• 1x line-in (3.5mm)
• 1x line-out (3.5mm)

None

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Kensington® Security Slot™, 3 x 7 mm

None

Chassis Intrusion Switch

Intel® vPro® Enterprise with Intel AMT 16

Front Diagnostic Panel with QR code

3-year, Onsite

3Y Premier TS WHB (CPN)

• ENERGY STAR® 8.0
• EPEAT™ Gold Registered
• TCO Certified 9.0
• RoHS compliant

Please visit ISV certifications for Lenovo® Workstations

Windows® 11 Pro for Workstations, Hungarian / English

None
