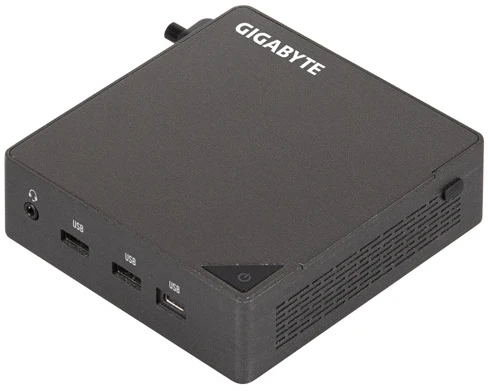

Gigabyte U7 255H 5.1GHZ, 2XHDMI
displayport (type c), lan, wifi, bt, 7xusb

Dimension

112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)

Motherboard Size

105 mm x 114.49 mm

CPU

Intel ® Core™ Ultra 7 processor 255H
16C, 6P+8E+2LPE, 28W

Memory

2 x SO-DIMM DDR5 slots, support up to 6400MHz
Max. 96GB

LAN

2.5GbE LAN (Intel ® I226V)

Graphics

Intel ® Arc™ Graphics, Intel ® Xe LPG+, up 8 Xe cores
2 x HDMI v2.1, 4096x2160 60Hz, TMDS, CEC
2 x USB type C ALT (DisplayPort v2.1)

Audio

HD Audio (Realtek Audio)

Expansion Slots

1 x M.2 M Key 2280 SSD slot (PCIe Gen5x4)
1 x M.2 M Key 2280 SSD slot (PCIe Gen4x4+SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

Front I/O

1 x Headset
2 x USB 3.2 Gen2
1 x USB-C 3.2 Gen2
1 x Power button with LED

Rear I/O

2 x HDMI 2.1 (TMDS & CEC)
1 x USB-C 3.2 (ALT)
1 x USB-C 3.2 (PD IN)
1 x USB 3.2 Gen2
1 x USB 2.0
1 x RJ45
1 x Kensington Lock Slot

Power Supply

100-240V, 100W USB PD adapter (USB type C)

VESA

VESA support
Supports 75 x 75 and 100 x 100 mm

Support OS

Windows 11 64bit

Environment

System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

NPU

Dedicated Low Power AI Engine 13 TOPs
