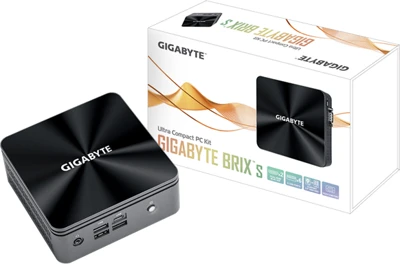

Gigabyte GB-BRI5H-10210E
i5-10210U, Max.: 64GB DDR4, RJ45, Wi-fi, SATA, M.2, 2xHDMI, USB3.2, USB Type

Dimension

46.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")

Motherboard Size

105mm x 112.4mm

CPU

10th Generation Intel ® Core™ i5 Processor

i5-10210U 4.2GHz, 4 core (TDP 15W)

Memory

2 x SO-DIMM DDR4 slot

2666MHz

Max. 64GB

LAN

Gigabit LAN (Intel i219v)

Wifi Card

Intel ® Dual Band Wireless-AC 3168

Graphics

Intel ® UHD Graphics 620

Audio

Realtek ALC255

HDMI Resolution (Max.)

HDMI 2.0 : 4K (3840×2160) @ 60 Hz

Storage

Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

1 x M.2 SSD (2280) slot support PCI-e x4 /SATA

Expansion Slots

1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O

3 x USB 3.2 Gen 2

1 x USB 3.2 Gen 2 Type C

1 x Headphone / Mic Jack

1 x Power Button

Rear I/O

2 x HDMI 2.0

2 x USB 3.2 Gen 2

1 x RJ45

1 x DC-In

Side I/O

1 x Kensington lock slot

1 x RS232 COM Port

Power Supply

Input: AC 100-240V

Output: DC 19.5V

6.92A

VESA

Bracket included

Supports 75 x 75 and 100 x 100 mm

Support OS

Windows 10

Environment

System Environment Operating Temperature: 0°C to +35°C

System Storage Temperature: -20°C to +60°C
