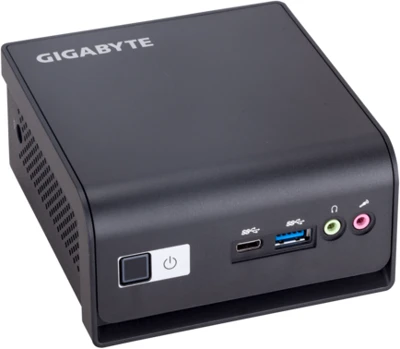

Gigabyte GB-BMPD-6005

Gigabyte GB-BMPD-6005
Brix barebone mini

• Dimension

  56.22 mm x 103 mm x 116.52 mm (2.21" x 4.06" x 4.59")

• Motherboard Size

  105 x 110 mm

• CPU

  Intel ® Pentium ® Processor N6005

  2.8GHz, 4 core (TDP 10W)

• Memory

  1 x SO-DIMM DDR4 slots

  2933MHz

  Max. 16GB

• LAN

  Gigabit LAN (Realtek 8111HS)

• Wifi Card

  Dual Band Wireless-802.11 AC

• Graphics

  Intel ® UHD Graphics 605

• Audio

  Realtek ALC255

• HDMI Resolution (Max.)

  HDMI2.0b

  Support 4K@60P HDR10

• Mini DP Resolution (Max.)

  DP1.4

  support 4K@60P HBR2

• Storage

  Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

• Expansion Slots

  1 x M.2 slot (2280_storage) PCIe X2/SATA

  1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

• Front I/O

  1 x USB3.0

  1 x USB3.0 type C

  1 x Headphone jack

  1 x Microphone jack

• Rear I/O

  1 x HDMI(2.0a)

  1 x mini DisplayPort (1.2a)

  2 x USB 3.0

  1 x RJ45

  1 x DC-In

  1 x Kensington lock slot

• Power Supply

  Input: AC 100-240V

  Output: DC 19V

  2.1A

• VESA

  Bracket included

  Supports 75 x 75 and 100 x 100 mm

• Support OS

  Win10 64bit

• Environment

  System Environment Operating Temperature: 0°C to +35°C

  System Storage Temperature: -20°C to +60°C
