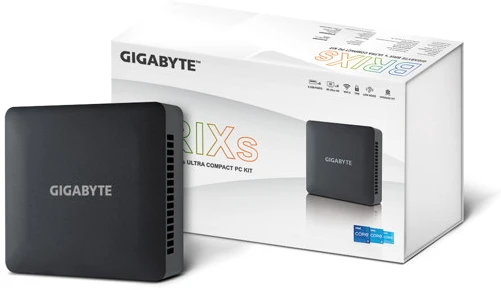

Gigabyte GB-BRI5H-1335

Gigabyte GB-BRI5H-1335
Brix barebone

Intel Core i5, i5-1335U, 10×, 0,9GHz, 2db, DDR4 - SODIMM, Intel Iris Xe, PCIe M.2 / SATA3 M.2, 2,5Gb/s, Wi-Fi, Bluetooth, IEEE 802.11ax (Wi-Fi 6), 135W, feketeIntel Core i5, i5-1335U, 10×, 0,9GHz, 2db, DDR4 - SODIMM, Intel Iris Xe, PCIe M.2 / SATA3 M.2, 2,5Gb/s, Wi-Fi, Bluetooth, IEEE 802.11ax (Wi-Fi 6), 135W, feketeGarancia: 3 Év

• Dimension

  124 x 120 x 49.7 mm

• CPU

  13th Gen Intel® Core™ i5-1335U Processor
  10 Cores (2P+8E), 12 Threads, 12MB Cache
  Frequency up to 4.6GHz(P Core Turbo), 15W

• Memory

  2 x SO-DIMM DDR4 slot
  3200MHz
  Max. 64GB

• LAN

  2.5 GbE LAN (Intel i226V)

• Wifi Card

  Intel AX203
  Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

• Graphics

  Intel® Iris® Xe Graphics, 96EU, 1.25GHz

• Audio

  Realtek ALC269 HD audio

• Video

  2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz
  2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz

• Storage

  1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)
  1 x 2.5” slot for HDD/SSD (9.0mm thick; SATA3)

• Front I/O

  1 x Headphone / Microphone
  2 x USB3.2 Gen2 Type-A
  2 x USB2.0 Type-A
  1 x Power Button

• Rear I/O

  1 x 2.5 GbE RJ45
  2 x HDMI 2.1
  2 x USB3.2 Gen2 Type-C with DP alt Mode
  1 x Kensington Lock Slot
  1 x DC-In

• Power Supply

  Input: AC 100-240V
  Output: DC 19.5V / 6.92A, 135W

• VESA

  VESA support
  Supports 75 x 75 and 100 x 100 mm
  *VESA Bracket to be purchased seperately.

• Support OS

  Win11 64 bit
  Win10 64 bit

• Environment

  System Environment Operating Temperature: 0°C to +35°C
  System Storage Temperature: -20°C to +60°C
