Asus MB166C
15,6" zenscreen - ips

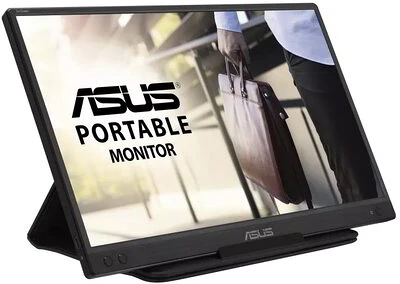

ASUS ZenScreen MB166C Portable USB Monitor- 15.6 inch, Full HD, IPS, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface

• 15.6-inch Full HD portable anti-glare IPS display with an ultraslim and thin design helps you get things done more efficiently when you’re on the go
• USB Type-C connector (DP Alt mode) for user convenience and compatibility with compatible devices
• ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience.
• Automatically sense its orientation and switch the monitor between landscape and portrait modes via DisplayWidget software.​
• User-friendly design with embedded tripod socket on the rear and foldable sleeve for versatility.

ASUS ZenScreen MB166C

Display

Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 800:1
Display Colors : 262K
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Flicker-free : Yes

Video Feature

Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes
HDCP : Yes, 1.4
DisplayWidget : Yes
Low Blue Light : Yes

Audio Feature

Speaker : No

I/O Ports

USB-C x 1 (DP Alt Mode)

Signal Frequency

Digital Signal Frequency : USB-C: 24-83KHZ (H) / 60Hz(V)

Power Consumption

Power Consumption : 5.24 W
Power Saving Mode : Power Off Mode : Voltage : 100-240V, 50/60Hz

Mechanical Design

Height Adjustment : No
1/4" Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension without Stand (W x H x D) : 360.14 x 225.64 x 11.8 mm
Box Dimension (W x H x D) : 434 x 290 x 76mm

Weight (Esti.)

Net Weight without Stand : 780g
Gross Weight : 1.7kg

Accessories (vary by regions)

Quick start guide
USB-C cable
Warranty Card
ZenScreen sleeve

Certificate

TÜV Flicker-free
TÜV Low Blue Light
