Asus 90LM0703-B01170
Zenscreen mb165b

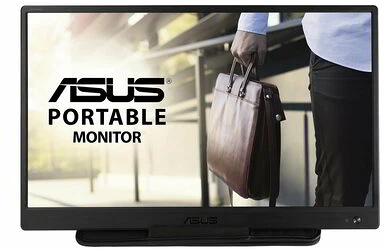

ASUS ZenScreen MB165B Portable USB Monitor- 15.6 inch, HD(1366x768), Narrow Bezel, USB-powered, Anti-glare surface

• 15.6-inch portable USB-powered monitor with a single USB 3.0 cable for power and video signal transmission
• The slim and thin profile helps you get things done more efficiently when you’re on the go
• User-friendly design with embedded tripod socket on the rear and foldable sleeve for versatility.
• Can automatically sense its orientation and switch the monitor between landscape and portrait modes.

Display

Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.23*193.54mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : TN
Viewing Angle (CR≧10, H/V) : 90°/ 65°
Pixel Pitch : 0.252mm
Resolution : 1366x768 (WXGA )
Brightness (Typ.) : 220cd/㎡
Contrast Ratio (Typ.) : 500:1
Display Colors : 260K
Response Time : 10ms(Tr+Tf)
Refresh Rate (Max) : 60Hz

Video Feature

HDCP : Yes
DisplayWidget : Yes

Audio Feature

Speaker : No

I/O Ports

USB 3.0 (Signal) : x 1

Power Consumption

Power Consumption : Power Saving Mode : Power Off Mode : Voltage : DC: 5V, 3A

Mechanical Design

Height Adjustment : No
Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension without Stand (W x H x D) : 360.14*225.64*11.8mm
Box Dimension (W x H x D) : 434 x 290 x 76 mm

Weight (Esti.)

Net Weight without Stand : 780g
Gross Weight : 1.65kg

Accessories (vary by regions)

Quick start guide
USB 3.0 cable
Warranty Card
ZenScreen sleeve
