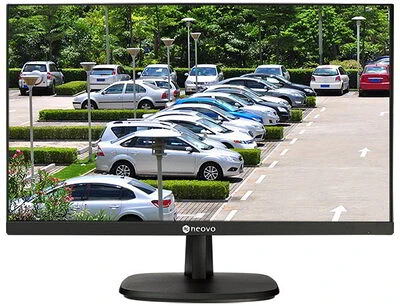

24-Inch 1080p Surveillance Monitor With BNC Connector
Panel Type
LED-Backlit TFT LCD
VA
Panel Size
23.8"
Max. Resolution
FHD 1920 x 1080
Pixel Pitch
0.275 mm
Brightness
250 cd/m²
Contrast Ratio
20,000,000:1 (DCR)
Viewing Angle (H/V)
178°/178°
Display Colour
16.7M
Response Time
5 ms
Surface Treatment
Anti-Glare Treatment (Haze25%),3H Hard Coating
FrequencyFrequency (H)
30 kHz-85 kHz
Frequency (V)
48 Hz-75 Hz
Signal InputHDMI
1.4 x 1
VGA
15-Pin D-Sub x 1
Composite
BNC x 1
Signal OutputComposite
BNC x 1
AudioAudio In
Stereo Audio Jack (3.5 mm)
Internal Speakers
2W x 2
PowerPower Supply
Internal
Power Requirements
AC 100-240V
50/60 Hz
On Mode
15W (On)
Standby Mode
Off Mode
Operating Conditions
Temperature
5°C-35°C (41°F-95°F)
Humidity
20%-85% (non-condensing)
Storage ConditionsTemperature
-20°C-60°C (-4°F-140°F)
Humidity
10%-90% (non-condensing)
MountingVESA FPMPMI
Yes (100 x 100 mm)
StandTilt
-5° to 20°
SecurityKensington Security Slot
Yes
DimensionsProduct with Base (W x H x D)
540.1 x 408.3x 226.5 mm (21.3" x 16.1" x 8.9")
Product w/o Base (W x H x D)
540.1 x 322.1 x 41.8 mm (21.3" x 12.7" x 1.7")
Packaging (W x H x D)
606.0 x 480.0 x 108.0 mm (23.9" x 18.9"x 4.3")
WeightProduct with Base
3.4 kg (7.5 lb)
Product w/o Base
3.0 kg (6.6 lb)
Packaging
4.8 kg (10.6 lb)
Regulation ApprovalCertifications & Compliance
CE
LVD
WEEE
RoHS
REACH
UKCA
EAC
FCC
ICES-003
Supplied
Audio Cable
Power Cord
Quick Start Guide
VGA Cable
Warranty Card
Ceiling Mount (Landscape only)
CMP-01 + WMK-03
Wall Mount (Landscape only)
PMK-01
WMA-01
WMK-01
WMK-03
Desk mount (Landscape only)
DMC-01
DMC-02D
DMS-01D
ES-02
|
|
