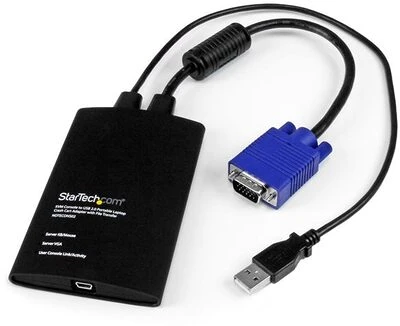

The NOTECONS02 Portable USB Crash Cart Adapter lets you turn your laptop into a portable console for rack servers, PCs, ATMs, kiosks and more, now with local file transfer and video capture built into the software. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server for instant, BIOS-level control.
Connect Quickly
Get connected in seconds. The crash cart adapter offers integrated VGA and USB cables for the server-side connections and includes the USB cable to connect to your laptop.
Troubleshoot your devices faster with a flexible software interface that lets you transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars - ever.
Connect UniversallyWith no server-side software installation required, the USB crash cart adapter can connect to any PC or device that has a VGA and USB port, to provide BIOS-level control.
Powered from the server-side USB connection, the laptop crash cart adapter doesn't require an AC outlet and saves your laptop / netbook battery power.
Connect PortablyWith portability for the mobile administrator or repair technician in mind, this pocket-sized adapter features a rugged design that easily fits inside your laptop bag and requires no additional accessories to connect.
Eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems, this portable crash cart lets you connect to a headless device with only a laptop.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware | |
|---|---|
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| KVM Ports | 1 |
| Multi-Monitor | No |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | No |
| Performance | |
| Hot-Key Selection | No |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| Connector(s) | |
| Console Interface(s) | 1 - USB Mini-B (5 pin) Female Input |
| Host Connectors | 1 - USB A (4 pin) Male |
| 1 - VGA (15 pin; High Density D-Sub) Male | |
| Software | |
| OS Compatibility | Windows® 10 (32/64bit), 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server® 2012, 2012 R2, 2008 R2 Mac OS® 10.x (Tested up to 10.11) Linux 2.6 - 4.4 (32/64bit) stable only |
| Indicators | |
| LED Indicators | ... |
|
|
