Számítástechnika / Nyomtató / Lézernyomtató / Brother MFCB7810DW

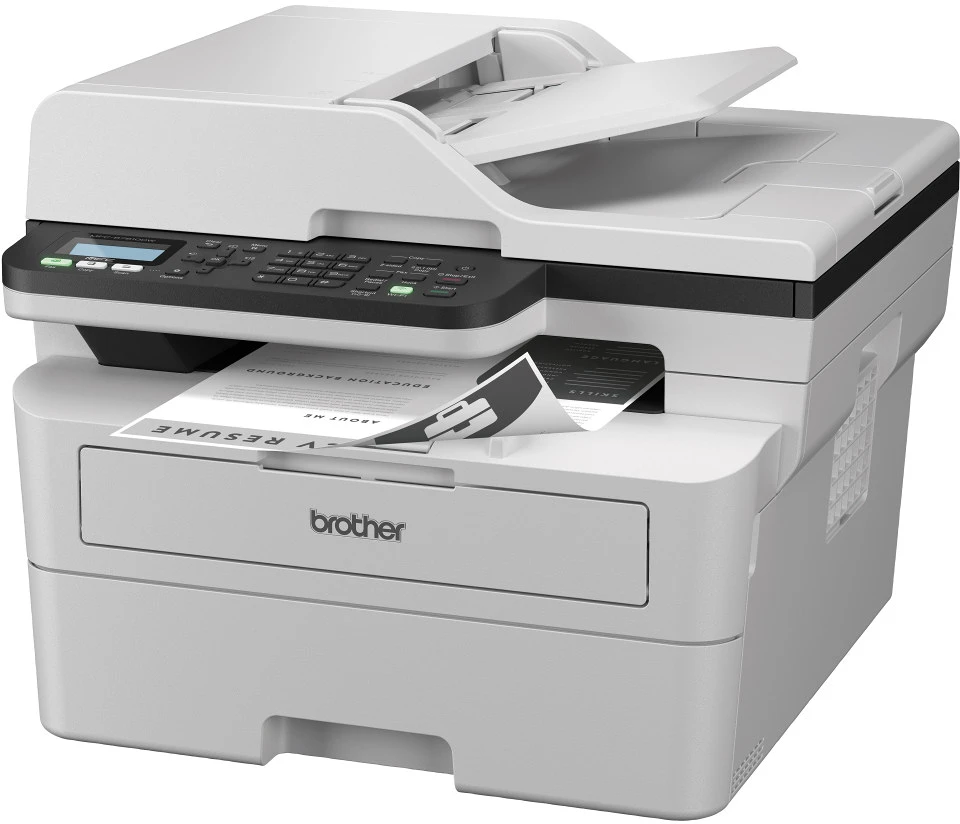

Brother MFCB7810DW
Multifunkciós mono lézernyomtató

129 190 Ft-tól, 141 519 Ft-ig, 4 ajánlat

Árfigyelés

Listába

MFCB7810DWYJ1 Brother MFCB7810DW mono lézer multifunkciós nyomtató

129 190 Ft

Tovább a bolthoz

Brother MFCB7810DWYJ1 multifunkciós mono lézernyomtató

134 310 Ft

Tovább a bolthoz

MFCB7810DWYJ1 Brother MFC-B7810DW multifunkciós lézernyomtató

140 800 Ft

Tovább a bolthoz

MFCB7810DWYJ1 Brother MFC-B7810DW Wireless Lézernyomtató/Másoló/Scanner/Fax

141 519 Ft

Tovább a bolthoz

General Specifications

Printer Type	Laser
Print Method	Electrophotographic Laser Printer
Memory Capacity	Standard	256 MB
Liquid Crystal Display (LCD)	16 characters x 2 lines
Power Source	220 V to 240 V AC 50/60 Hz
Power Consumption (Average)	Peak	Approximately 920 W
Printing? *1	Approximately 470 W at 25°C
Printing (Quiet Mode)? *1	Approximately 270 W at 25°C
Copying? *1	Approximately 490 W at 25°C
Copying (Quiet Mode)? *1	Approximately 280 W at 25°C
Ready? *1	Approximately 43 W at 25°C
Sleep? *1	Approximately 4.1 W
Deep Sleep? *1	(DCP-B7600D) Approximately 0.5 W (DCP-B7620DW/MFC-B7800DN/MFC-B7810DW) Approximately 0.6 W
Power Off? 1 ? 2 ? *3	Approximately 0.08 W
Dimensions (Typical outline view) (DCP-B7600D/DCP-B7620DW) ? (MFC-B7800DN/MFC-B7810DW) ?	Unit: mm (DCP-B7600D/DCP-B7620DW) * :? 410 :? 272 * :? 399 (MFC-B7800DN/MFC-B7810DW) * :? 410 :? 319 * :? 399
Weight (with supplies)	(DCP-B7600D/DCP-B7620DW) 10.5 kg (MFC-B7800DN/MFC-B7810DW) 12.0 kg
Noise Level	Sound Pressure? *4	Printing	LpAm = 49 dB (A)
Printing (Quiet Mode)	LpAm = 44 dB (A)
Ready	LpAm = 30 dB(A)
Sound Power	Printing? *4	LWAc = 6.63 B (A)
Printing (Quiet Mode)	LWAc = 6.12 B (A)
Ready	LWAc = Inaudible
Temperature	Operating	From 10°C to 32.5°C
Storage	From 0°C to 40°C
Humidity	Operating	20% to 80% (without condensation)
Storage	35% to 85% (without condensation)
Automatic Document Feeder (ADF) (MFC-B7800DN/MFC-B7810DW)	Up to 50 sheets For best results we recommend: Temperature: 20°C to 30°C Humidity: 50% to 70% Paper: 80 g/m2

Measured when the machine is connected using the same network connection as the ENERGY STAR Ver. 3.1 test method.

Measured according to IEC 62301 Edition 2.0.

Power consumption varies slightly depending on the usage environment.

Measured in accordance with the method described in ISO 7779.

Document Size Specification

Document Size	ADF Width? *1	105 mm to 215.9 mm
ADF Length? *1	147.3 mm to 355.6 mm
Scanner Glass Width	Maximum 215.9 mm
Scanner Glass Length	Maximum 300 mm

ADF models only

Print Media Specifications

Paper Input	Paper Tray (Standard)	Paper Type	Plain Paper, Thin Paper, Recycled Paper, Thick Paper
Paper Size	A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, 16K (195x270 mm),? A4 Short (270mm Paper)
Paper Weight	60 to 163 g/m2? *1
Maximum Paper Capacity	Up to 250 sheets of 80 g/m2? Plain Paper
Manual Feed Slot	Paper Type	Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size	Width: 76.2 to 215.9 mm Length: 127 to 355.6 mm Envelope: COM-10, DL, C5, Monarch
Paper Weight	60 to 230 g/m2
Maximum Paper Capacity	One sheet at a time
Paper Output? *2	Face Down Output Tray	Up to 120 Sheets? (face down delivery to the face down output paper tray)? *3
Face Up Output Tray	One sheet (face up delivery to the face up output tray)
2-sided	Automatic 2-sided Printing	Paper Type	Plain Paper, Thin Paper, Recycled Paper
Paper Size	A4
Paper Weight	60 to 105 g/m2

For paper of 105 g/m2? and above, open the back cover to use the face up output tray.

For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.

Calculated with 80 g/m2? in a temperate, non humid environment. Actual output tray capacity may vary depending on environmental conditions.

Fax Specifications NOTE

This feature is available for MFC models.

Compatibility	ITU-T Super Group 3
Coding System	MH / MR / MMR / JBIG
Modem Speed	33,600 bps (with Automatic Fallback)
2-sided Print Receiving	(MFC-B7800DN/MFC-B7810DW) Yes
Scanning Width	Maximum 208 mm
Printing Width	Maximum 207.4 mm
Greyscale	8 bit / 256 levels
Resolution	Horizontal	203 dpi
Vertical	Standard: 98 dpi Fine: 196 dpi Super fine: 392 dpi Photo: 196 dpi
Address Book	(MFC-B7800DN/MFC-B7810DW) 200 Locations
Shortcut	(MFC-B7800DN/MFC-B7810DW) 10 locations
Groups	Up to 20
Broadcasting	(MFC-B7800DN/MFC-B7810DW) 260 Locations
Automatic Redial	3 times at 5-minute intervals
Memory Transmission	(MFC-B7800DN/MFC-B7810DW) Up to 400 pages? ? *1
Out of Paper Reception	(MFC-B7800DN/MFC-B7810DW) Up to 400 pages? ? *1

‘Pages’ refers to the ‘ITU-T TestChart Document No.1’ (a typical business letter, Standard resolution, JBIG code).

Copy Specification

Copy Width	Maximum 210 mm
Sort Copy	Yes
Stack Copy	Up to 99 pages
Resolution	Maximum 600 x 600 dpi
First Copy Out Time? *1	Less than 10 seconds at 23°C

From Ready Mode and standard tray.

Scanner Specifications

Colour? / Black	Yes / Yes
TWAIN Compliant	Yes (Windows 10 / Windows 11) ?
WIA Compliant	Yes (Windows 10 / Windows 11)
AirPrint Compliant	(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW) Yes (macOS v11, v12, v13)
Colour? Depth	30 bit? colour? Processing (Input) 24 bit? colour? Processing (Output)
Grey? Scale	10 bit? colour? Processing (Input) 8 bit? colour? Processing (Output)
Resolution? *2	Up to 19200 x 19200 dpi (interpolated) Up to 1200 x 1200 dpi (from Scanner Glass) Up to 600 x 600 dpi (from the ADF)? ? *1
Scanning Width	Maximum 210 mm

ADF models only

Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows 10 and Windows 11 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)

Printer Specifications

Automatic 2-sided Print	Yes
Emulation	PCL6, BR-Script3, PDF Version 1.7
Resolution	Up to 1200 x 1200 dpi
Print Speed? 1 ? 2	1-sided Print? *3	Up to 34 pages/minute (A4 size) Up to 36 pages/minute (Letter size)
2-sided Print	Up to 16 pages/minute (Up to 8 sheets/minute) (A4 size) Up to 17 pages/minute (Up to 8.5 sheets/minute) (Letter size)
First Print Time? *4	Less than 8.5 seconds at 23°C

The print speed may change depending on the type of document you print.

The print speed may be slower when the machine is connected by wireless LAN.

These print speeds are for 1-sided printing and measured in accordance with the ISO/IEC 24734 standard.

From Ready mode and standard tray.

Interface Specifications

USB? 1 ? 2	Hi-Speed USB 2.0 Use a USB 2.0 interface cable that is no more than 2 metres long.
LAN	(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW) 10Base-T/100Base-TX? *3
Wireless LAN	(DCP-B7620DW/MFC-B7810DW) IEEE 802.11a/b/g/n (Infrastructure Mode) IEEE 802.11a/g/n (Wi-Fi Direct®)

Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.

Third party USB hub devices are not supported.

Use a straight-through Category 5 (or greater) twisted-pair cable.

Supported Protocols and Security Features

Supported protocols and security features may differ depending the models.

Ethernet

10Base-T/100Base-TX

Wireless LAN (2.4GHz)

IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)

Wireless LAN (5GHz)

IEEE 802.11a/n (Infrastructure Mode), IEEE 802.11a/n (Wi-Fi Direct)

Protocols (IPv4)

ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server,CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP

Protocols (IPv6)

NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP

Network Security (Wired)

APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3*, IMAP4*, FTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos

*When Internet FAX is downloaded.

Network Security (Wireless)

APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3*, IMAP4*, FTP), SNMP v3, 802.1x ( EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos

*When Internet FAX is downloaded.

Wireless Network Security

WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)

Wireless Certification

Wi-Fi Certification Mark License (WPA3™? - Enterprise, Personal), Wi-Fi Protected Setup™? (WPS) Identifier Mark License, Wi-Fi CERTIFIED™? Wi-Fi Direct

Computer Requirements Specifications

Supported Operating Systems And Software Functions

For the latest supported OS, go to your model's? Supported OS? page at? support.brother.com/os .

Computer Platform & Operating System Version	PC Interface	Processor	Hard Disk Space to Install? *1
USB? *2	Wired LAN	Wireless LAN	For Drivers	For Applications (including Drivers)
Windows 10 Home / 10 Pro / 10 Education / 10 Enterprise? 4 ? 5	Printing PC Fax? *3 Scanning	32 bit (x86) or 64 bit (x64) processor	80 MB	1.8 GB
Windows 11 Home / 11 Pro / 11 Education / 11 Enterprise? 4 ? 5	64 bit (x64) processor
Windows Server 2012	Printing Scanning	Printing	64 bit (x64) processor	80 MB	80 MB
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
macOS v11? *6	Printing PC-Fax (Send)? *3 Scanning	64 bit processor	N/A	500 MB
macOS v12? *6
macOS v13? *6
Chrome OS	Printing Scanning	N/A	N/A	N/A

An Internet connection is required to install the software if the installation disc is not supplied.

Third party USB ports are not supported.

PC-Fax supports black and white only.

For WIA, 1200x1200 resolution. Brother Scanner Utility enables to enhance up to 19200 x 19200 dpi.

PaperPort™? 14SE supports Windows 10 and Windows 11.

macOS DisclaimerAirPrint capable: Printing, scanning, or PC faxing(Send) via macOS requires the use of AirPrint. Mac drivers are not provided for this machine.
