Számítástechnika / Nyomtató / Lézernyomtató / Brother DCPL5510DWRE1

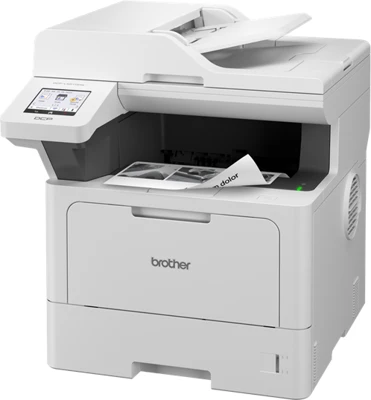

Brother DCPL5510DWRE1
Dcp-l5510dw multifunkciós lézernyomtató

162 890 Ft-tól, 194 310 Ft-ig, 2 ajánlat

Árfigyelés

Listába

Brother DCPL5510DW mono lézer multifunkciós nyomtató

162 890 Ft

Tovább a bolthoz

Brother DCP-L5510DW Lézernyomtató/Másoló/Scanner

194 310 Ft

Tovább a bolthoz

General Specifications

Printer Type	Laser
Print Method	Electrophotographic Laser Printer
Memory Capacity	Standard	(DCP-L5510DN/MFC-L5710DN/MFC-L5915DW) 1 GB (MFC-L6915DW) 2 GB
Machine display	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW) 3.5 in. TFT Colour touchscreen LCD 70.08 x 52.56 mm 1 (MFC-L5915DW/MFC-L6720DW) 5.0 in. TFT Colour touchscreen LCD 108.00 x 64.8 mm 1 (MFC-L6915DW) 7.0 in. TFT Colour touchscreen LCD 153.84 x 85.63 mm *1
Power Source	220 V to 240 V AC 50/60 Hz
Power Consumption (Average)	Peak	Approximately 1,280 W
Printing *2	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW) Approximately 670 W at 25°C (MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) Approximately 710 W at 25°C
Printing (Quiet Mode) *2	Approximately 430 W at 25°C
Copying *2	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW) Approximately 680 W at 25°C (MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) Approximately 710 W at 25°C
Copying (Quiet Mode) *2	Approximately 430 W at 25°C
Ready *2	Approximately 31 W at 25°C
Sleep *2	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW) Approximately 5.9 W (MFC-L5915DW/MFC-L6720DW) Approximately 6.0 W (MFC-L6915DW) Approximately 6.7 W
Deep Sleep *2	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW) Approximately 0.6 W (MFC-L5915DW/MFC-L6720DW) Approximately 0.8 W (MFC-L6915DW) Approximately 0.7 W
Power Off 3 4	Approximately 0.05 W
Dimensions (Typical outline view)	Unit: mm (DCP-L5510DN/MFC-L5710DN/MFC-L5710DW) * : 417 : 448 * : 461 (DCP-L5660DN) * : 495 : 486 * : 460 (MFC-L5915DW) * : 495 : 486 * : 473 (MFC-L6720DW) * : 495 : 518 * : 473 (MFC-L6915DW) * : 495 : 518 * : 495
Weight (with supplies)	(For Australia and New Zealand) (MFC-L5710DW) 16.4 kg (MFC-L5915DW) 17.4 kg (MFC-L6720DW) 18.9 kg (MFC-L6915DW) 19.7 kg (For other countries) (DCP-L5510DN/MFC-L5710DN) 16.8 kg (MFC-L5710DW) 16.9 kg (DCP-L5660DN) 17.1 kg (MFC-L5915DW) 17.8 kg (MFC-L6915DW) 20.4 kg
Noise Level	Sound Pressure *5	Printing	LpAm = 54.0 dB (A)
Printing (Quiet Mode)	LpAm = 50 dB (A)
Ready	LpAm = Up to 35.0 dB (A)
Sound Power	Printing *5	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW/MFC-L5915DW) LWAc = 7.02 B (A) (MFC-L6720DW/MFC-L6915DW) LWAc = 7.06 B (A)
Printing (Quiet Mode)	LWAc = 6.54 B (A)
Ready	LWAc = Up to 4.9 B (A)
Temperature	Operating	From 10°C to 32.5°C
Storage	From 0°C to 40°C
Humidity	Operating	20% to 80% (without condensation)
Storage	35% to 85% (without condensation)
Automatic Document Feeder (ADF)	(DCP-L5510DN/MFC-L5710DN/MFC-L5710DW) Up to 50 sheets (DCP-L5660DN/MFC-L5915DW/MFC-L6720DW) Up to 70 sheets (MFC-L6915DW) Up to 80 sheets For best results we recommend: Temperature: 20°C to 30°C Humidity: 50% to 70% Paper: 80 g/m2

Measured diagonally.

Measured when the machine is connected using the same network connection as the ENERGY STAR Ver. 3.1 test method.

Measured according to IEC 62301 Edition 2.0.

Power consumption varies slightly depending on the usage environment.

Measured in accordance with the method described in ISO 7779.

Document Size Specification

Document Size	ADF Width	105 mm to 215.9 mm
ADF Length	147.3 mm to 355.6 mm
Scanner Glass Width	Maximum 216 mm
Scanner Glass Length	(DCP-L5510DN/MFC-L5710DN/MFC-L5710DW) Maximum 300 mm (DCP-L5660DN/MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) Maximum 355.6 mm

Print Media Specifications

Paper Input	Paper Tray (Standard)	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Thick Paper
Paper Size	A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Paper Weight	60 to 163 g/m2 *1
Maximum Paper Capacity	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW/MFC-L5915DW) Up to 250 sheets of 80 g/m2 Plain Paper (MFC-L6720DW/MFC-L6915DW) Up to 520 sheets of 80 g/m2 Plain Paper
Multi-Purpose Tray (MP tray)	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size	Width: 69.8 to 215.9 mm Length: 127 to 355.6 mm Envelope: COM-10, DL, C5, Monarch
Paper Weight	60 to 230 g/m2 *1
Maximum Paper Capacity	Up to 100 Sheets of 80 g/m2 Plain Paper Envelope: Up to 11 mm thick
Paper Tray 2, 3 (Optional) *2	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Thick Paper
Paper Size	A4, Letter, B5 (JIS), A5, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Paper Weight	60 to 120 g/m2 *1
Maximum Paper Capacity	LT-5505 Up to 250 sheets of 80 g/m2 Plain Paper LT-6505 Up to 520 sheets of 80 g/m2 Plain Paper
Paper Output *3	Face Down Output Tray	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW/MFC-L5915DW/MFC-L6720DW) Up to 150 sheets of 80 g/m2 Plain Paper (face-down delivery to the face-down output paper tray) (MFC-L6915DW) Up to 250 Sheets of 80 g/m2 Plain Paper (face down delivery to the face down output paper tray)
Face Up Output Tray	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW/MFC-L5915DW/MFC-L6720DW) One sheet (face up delivery to the face up output tray) (MFC-L6915DW) Up to 10 sheets (face up delivery to the face up output tray)
2-sided	Automatic 2-sided Printing	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
Paper Size	For Australia, Korea, and New Zealand A4 For other countries Select the paper size you want to use by sliding the 2-sided lever: A4 Letter, Legal, Mexico Legal, India Legal, Folio
Paper Weight	60 to 105 g/m2

For paper of 105 g/m2 and above, open the back cover to use the face up output tray.

Maximum number of Lower Trays: Up to two Lower Trays in any combination.

For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.

Fax Specifications NOTE

This feature is available for MFC models.

Compatibility	ITU-T Super Group 3
Coding System	MH / MR / MMR / JBIG
Modem Speed	33,600 bps (with Automatic Fallback)
2-sided Print Receiving	Yes
Automatic 2-sided Sending	(MFC-L5710DN/MFC-L5710DW/MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) Yes (from the ADF)
Scanning Width	Maximum 208 mm
Printing Width	Maximum 207.4 mm
Greyscale	8 bit / 256 levels
Resolution	Horizontal	203 dpi
Vertical	Standard: 98 dpi Fine: 196 dpi Super fine: 392 dpi Photo: 196 dpi
Address Book *1	300 Locations
Groups *1	Up to 20
Broadcasting	350 Locations
Automatic Redial	3 times at 5-minute intervals
Memory Transmission	Up to 500 pages *2
Out of Paper Reception	Up to 500 pages *2

Available for DCP and MFC models

‘Pages’ refers to the ‘ITU-T TestChart Document No.1’ (a typical business letter, Standard resolution, JBIG code).

Copy Specification

Copy Width	Maximum 210 mm
Automatic 2-sided Copy	(DCP-L5660DN/MFC-L5710DN/MFC-L5710DW/MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) Yes (from the ADF)
Sort Copy	Yes
Stack Copy	Up to 999 pages
Enlarge/Reduce	25 to 400% (in increments of 1%)
Resolution	Maximum 1200 x 600 dpi
First Copy Out Time *1	Less than 8.7 seconds at 23°C

From Ready Mode and standard tray.

Scanner Specifications

Colour / Black	Yes / Yes
TWAIN Compliant	Yes (Windows 10 / Windows 11)
WIA Compliant	Yes (Windows 10 / Windows 11)
Colour Depth	48 bit colour Processing (Input) 24 bit colour Processing (Output)
Grey Scale	16 bit colour Processing (Input) 8 bit colour Processing (Output)
Resolution *1	Up to 19200 x 19200 dpi (interpolated) Up to 1200 x 1200 dpi (from Scanner Glass) Up to 600 x 600 dpi (from the ADF)
Scanning Width	Maximum 210 mm
Automatic 2-sided Scanning	(DCP-L5660DN/MFC-L5710DN/MFC-L5710DW/MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) Yes (from the ADF)

Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows 10 and Windows 11 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)

Printer Specifications

Automatic 2-sided Print	Yes
Emulation	PCL6, BR-Script3, IBM Proprinter XL, Epson FX-850, PDF version1.7, XPS version 1.0
Resolution	Up to 1200 x 1200 dpi
Print Speed *1	1-sided Print 2 3	(DCP-L5510DN/DCP-L5660DN/MFC-L5710DN/MFC-L5710DW) Up to 50 pages/minute (Letter size) Up to 48 pages/minute (A4 size) (MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) Up to 52 pages/minute (Letter size) Up to 50 pages/minute (A4 size)
2-sided Print	Up to 24 sides/minute (Up to 12 sheets/minute) (Letter size) Up to 24 sides/minute (Up to 12 sheets/minute) (A4 size)
First Print Time 4 5 *6	Less than 6.7 seconds at 23°C

The print speed may be slower when the machine is connected by wireless LAN.

The print speeds of "1-sided Print" were measured in accordance with ISO/IEC 24734.

This speed is based on 1-sided printing. If your model’s default print setting is "2-sided", change to "1-sided" for these results.

Printing from Ready mode and standard tray.

Length of time from when the machine is started until paper output is complete (except when the machine is turned on or when an error is fixed)

This applies when printing on A4- or Letter-size paper from the standard tray. It could be longer however, depending on the paper size and the amount of print data.

Interface Specifications

USB	Type: USB Type-B receptacle Version: USB 2.0 High-Speed 1 2 Use a USB 2.0 interface cable that is no more than 2 metres long. Type: USB Type-A receptacle (Front) 3 (MFC-L6915DW) Type: USB Type-A receptacle (Rear) 3 Version: USB 2.0 High-Speed Connect a USB flash drive for USB Storage Print.
LAN	10Base-T/100Base-TX/1000Base-T *4
Wireless LAN	(MFC-L5710DW/MFC-L5915DW/MFC-L6720DW/MFC-L6915DW) IEEE 802.11a/b/g/n (Infrastructure Mode) IEEE 802.11a/g/n (Wi-Fi Direct®)
NFC *5	(MFC-L6915DW) Yes

Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.

Third party USB hub devices are not supported.

USB host port

Use a Category 5e (or greater) network cable.

When you connect an external IC card reader, use a HID class driver supported device.

Direct Print Feature Specifications

Compatibility	PDF version1.7, JPEG, Exif+JPEG, PRN (created by the machine's own printer driver), TIFF (scanned by Brother models), XPS version 1.0
Interface	USB direct interface: Front x1, Rear x1 (MFC-L6915DW)

Supported Protocols and Security Features

Supported protocols and security features may differ depending the models.

Ethernet

10Base-T/100Base-TX/1000Base-T

Protocols (IPv4)

ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4, Syslog

Protocols (IPv6)

NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4, Syslog

Network Security (Wired)

APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, FTP, POP3, IMAP4, LDAP), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec

Network Security (Wireless)

APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, FTP, POP3, IMAP4, LDAP), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec

Wireless Network Security

WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)

Wireless Certification

Wi-Fi Certification Mark License (WPA3™ - Enterprise, Personal), Wi-Fi Protected Setup™ (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct

Computer Requirements Specifications

Supported Operating Systems And Software Functions

For the latest supported OS, go to your model's Supported OS page at support.brother.com/os .

Computer Platform & Operating System Version	Computer Interface	Processor	Hard Disk Space to Install *1
USB *2	10Base-T/100Base-TX/1000Base-T (Ethernet)	Wireless 802.11a/b/g/n	For Drivers	For Applications (including Drivers)
Windows Operating System	Windows 10 Home / 10 Pro / 10 Education / 10 Enterprise 3 4	Printing PC Fax *5 Scanning	32 bit (x86) or 64 bit (x64) processor	80 MB	1.8 GB
Windows 11 Home / 11 Pro / 11 Education / 11 Enterprise 3 4	64 bit (x64) processor
Windows Server 2012	Printing Scanning	Printing	64 bit (x64) processor	80 MB
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Mac Operating System *6	macOS v11	Printing PC-Fax (Send) 5 7 Scanning	64 bit processor	N/A	500 MB
macOS v12
macOS v13
Chrome OS		Printing Scanning	N/A	N/A	N/A

An Internet connection is required to install the software if the installation disc is not supplied.

Third party USB ports are not supported.

For WIA, 1200x1200 resolution. Brother Scanner Utility enables resolutions up to 19200 x 19200 dpi.

PaperPort™ 14SE supports Windows 10 and Windows 11.

PC-Fax supports black and white only.

macOS Disclaimer

AirPrint capable: Printing or scanning via Mac requires using AirPrint. Mac drivers are not provided.

AirPrint only.
