Brand Name: | Zebra |
Product Series: | Xi4 |
Product Model: | 220Xi4 |

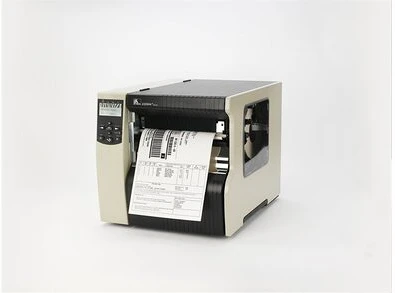

Product Name: | 220Xi4 Network Thermal Label Printer |
Product Type: | Direct Thermal/Thermal Transfer Printer |
Technical Information |
Recommended Use: | Label Print |
Print Colour: | Monochrome |
Maximum Mono Print Speed: | 152.40 mm/s |
Maximum Print Resolution: | 300 dpi |
Maximum Print Width: | 215.90 mm (8.50") |
Bar Code Symbology Supported: | - Codabar
- Code 11
- Code 128
- Code 128-A
- Code 128-B
- Code 128-C
- Code 128 UCC
- Code 39
- Code 93
- EAN-13
- EAN-8
- ISBT-128
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Planet Code
- Plessey
- POSTNET
- Standard 2 of 5
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- UPC-A
- UPC-E
- Aztec Code
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- Micro PDF
- PDF-417
- QR Code
- RSS
- GS1 DataBar
- TLC 39
|
Features: | LCD Display |
Memory |
Standard Memory: | 16 MB |
Memory Technology: | SDRAM |
Flash Memory: | 8 MB |
Interfaces/Ports |
Parallel Port: | Yes |
Serial Port: | Yes |
USB: | Yes |
Network & Communication |
Ethernet: | Yes |
Ethernet Technology: | Fast Ethernet |
Media Types & Handling |
Media Type: | - Continuous Form
- Black Mark
- Roll Fed
- Die-cut Label
- Fanfold
|
Media Sensor: | - Transmissive Media Sensor
- Reflective Media Sensor
|
Media Thickness: | 304.8 µm |
Maximum Roll Diameter: | 81.28 mm |
Maximum Label Width: | 223.52 mm |
Maximum Label Length: | 3.81 m |
Label Core Size: | 25.40 mm |
Ribbon Core Size: | 25.40 mm |
Fonts & Emulation |
Language Emulation: | |
Power Description |
Input Voltage: | |
Physical Characteristics |
Height: | 393.7 mm |
Width: | 401.6 mm |
Depth: | 517.7 mm |
Miscellaneous |
Package Contents: | - 220Xi4 Network Thermal Label Printer
- Power Cord
|
Additional Information: | - Unicode Compliant
- Intelligent printhead
- Auto calibration
- Clear Bi-fold Media Side Door
- Construction: 12-gauge steel frame
- Single 32 bit 133 Mhz RISC processor
- Automatic media/ribbon sensing capability
- Multi-level Element Energy Equalizer (E3) for superior print quality
- Mirror feature allows user-defined printer configurations to be retrieved from the network
|
Platform Supported: | PC |
