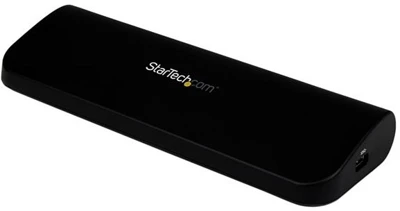

The USB3SDOCKHDV Dual Video Universal USB 3.0 Laptop Docking Station with Audio and Ethernet lets you add dual HD video outputs, as well as audio and Gigabit Ethernet connections to any notebook or Ultrabook™ computer through a single USB 3.0 connection.
This versatile USB 3.0 docking station features three external monitor outputs (HDMI, DVI-D and VGA) that can be used in either HDMI and DVI-D, or HDMI and VGA combinations to expand or mirror your desktop. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
An all-in-one mobile solution, the universal docking station combines a USB 3.0 hub (backward compatible with USB 2.0/1.1), Gigabit Ethernet RJ45 and headphone and microphone audio connectors into a single universal port replicator, perfect for enhancing laptop connectivity.
With a range of convenient connections, the dock is ideal for hoteling in shared workspaces, and for hot desks.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware |
| 4K Support | No |
| Bus Type | USB 3.0 |
| Chipset ID | DisplayLink - DL-3900
Genesys - GL3520
Realtek - RTL8211E |
| Displays Supported | 2 |
| Fast-Charge Port(s) | No |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 |
| Performance |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Analog Resolutions | 2048x1152 (VGA) |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 1920x1200 (DVI-D)
1920x1080 (HDMI) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Connector(s) |
| Connector Type(s) | 1 - DVI-D (25 pin) Female |
| | 1 - HDMI (19 pin) Female |
| | 1 - RJ-45 Female |
| | 1 - USB Type-B (9 pin) USB 3.0 Female |
| | 1 - VGA (15 pin; High Density D-Sub) Female |
| | 2 - 3.5 mm Mini-Jack (3 Position) Female |
| | |
