This sturdy, industrial grade USB hub can be wall mounted or installed onto a DIN rail for convenient access to its 4 female USB ports, providing a work area, server room, or industrial area with USB 2.0 connectivity.
With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 4 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).
| Industry Standards | USB 2.0 |
| Interface | USB 2.0 |
| Ports | 4 |
| Performance |
| Maximum Data Transfer Rate | 480 Mbps |
| MTBF | 193,317.8 Hours |
| Connector(s) |

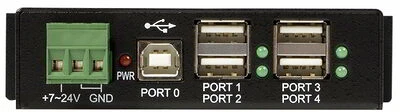

| External Ports | 1 - Terminal Block (3 Wire) |
| | 1 - USB B (4 pin) Female |
| | 4 - USB A (4 pin) Female |
| Software |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements |
| System and Cable Requirements | Any computer with a USB 2.0 port |
| Indicators |
| LED Indicators | 1 - Power |
| Power |
| Input Voltage | 7 ~ 24 DC |
| Power Source | Terminal Block |
| Environmental |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Physical Characteristics |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 1 in [26.3 mm] |
| Product Length | 4.5 in [114.5 mm] |
| Product Weight | 14.5 oz [410 g] |
| Product Width | 2.3 in [57.3 mm] |
| Packaging Information |
