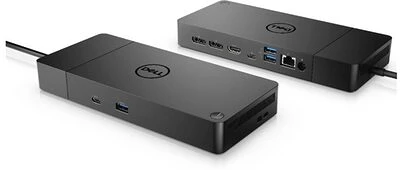

Dell 210-AZBX
Wd19s usb-c dock with 130w ac adapter

Product Type

• Docking Station

Display Support

• For a HBR2* PC
• 2 x FHD @ 60Hz
• 1 x QHD @ 60Hz
• 1 x 4K @ 30Hz
• For a HBR3 PC
• 3 x FHD @ 60Hz
• 2 x QHD @ 60Hz
• 1 x 4K @ 60Hz

Max Resolution

• 3840 x 2160 @ 60Hz

Video interfaces

• 2 x Full size DP1.4
• 1 x HDMI
• 1 x MFDP USB-C

USB Ports

• 3 x USB-A 3.1 Gen 1
• 2 x USB-C 3.1 Gen 2

Audio Ports

• 1 x Combo
• 1 x Speaker output

Networking

• Gigabit Ethernet

Security Slot Type (cable lock sold separately)

• 1 x Kensington lock slot
• 1 x Noble Wedge lock slot

LED Indicators

• Power Adapter LED
• Power Button LED
• RJ45 LEDs

Power

• Power Adapter 130 Watt AC with up to 90 Watts power delivery
• Up to 90 Watts power delivery to non-Dell systems

Dimensions

• 205mm x 90mm x 29mm / 8.07in x 3.54in x 1.14in

Dock Weight (without power adapter)

• 585g / 1.29lbs

Operating Systems

• Microsoft Windows 10
• Ubuntu 18.04
• Red Hat Enterprise Linux

Systems Management

• Wireless vPro supported by Notebook or Workstation

Docking Interface

• USB-C

Cable Length

• 1.0m

MAC Address

• Pass Through MAC Address

Management Features

• PXE Boot
• Wake-On-LAN
• MAC address pass-through
• Port Disablement
• Wake-On-Dock button
• Wake-On-Dock
• Dell Command Update (DCU)
• Error messages and dock event notifications

Doboz tartalma:

• 1 x WD19 Dock with USB-C Cable attached
• 1 x 130W Power Adapter
