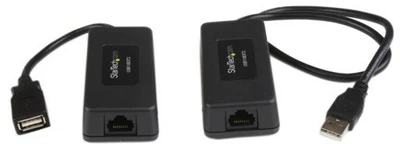

The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.
The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.
Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
| Hardware |
| Cabling | Cat 5e UTP or better |
| Ports | 1 |
| Performance |
| Max Distance | 40 m / 131 ft |
| Maximum Data Transfer Rate | 12 Mbps |
| Connector(s) |
| Local Unit Connectors | 1 - RJ-45 Female |
| | 1 - USB A (4 pin) Male |
| Remote Unit Connectors | 1 - RJ-45 Female |
| | 1 - USB A (4 pin) Female |
| Software |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements |
| System and Cable Requirements | Available USB port |
| Power |
| Power Source | USB-Powered |
| Environmental |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Physical Characteristics |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 1 in [25 mm] |
| Product Length | 3.3 in [85 mm] |
| Product Weight | 1.8 oz [50 g] |
| Product Width | 1.6 in [40 mm] |
| Packaging Information |
