3000 VA / 3000 W
On-line
230Vac
200*/208*/220/230/240 VAC
*Derated capacity to 80% when the output voltage is adjusted to 200VAC/208VAC
110-300 VAC ± 5% @ 50% load
160-300 VAC ± 5% @ 100% load
40Hz ~ 70 Hz
AC-DC: Zero
Inverter to Bypass: 4ms
25% Load - 26 min
50% Load - 11 min
75% Load - 6 min
100% Load - 3 min
High efficiency up to 96%
RS232 / USB / Intelligent Port (not included in the package)
8 x IEC C13 + 1 x IEC C19
6 x 12V 9Ah

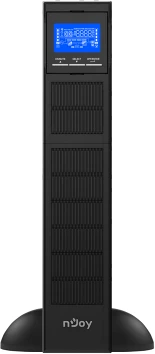

nJoy PW9123
Monitor & Control over USB, LAN and Internet (SNMP card optional)
Online download (
