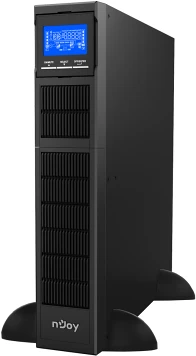

Njoy PWUP-OL150BA-AZ01B

Njoy PWUP-OL150BA-AZ01B
Balder 1500 lcd 1500va ups

• Power

• 1500 VA / 1500 W

• Type

• On-line

• Nominal Input Voltage

• 230 VAC

• Accepted Input Voltage Range

• 110-300 VAC ± 5% @ 50% load

  160-300 VAC ± 5% @ 100% load

• Nominal Output Voltage

• 200*/208*/220/230/240 VAC

  *Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC

• Frequency

• 40Hz ~ 70 Hz

• Outlets

• Input: 1 x IEC-320 C14

  Output: 8 x IEC-320 C13

• Transfer Time to Battery / AC

• Zero

• Efficiency

• High efficiency up to 96%

• Typical Backup Time

• 25% Load - 27 min

  50% Load - 11 min

  75% Load - 6 min

  100% Load - 3 min

• Communication Ports

• RS232 / USB / Intelligent Port (not included in the package)

• Battery Type

• Sealed and leak proof maintenance

• Battery Specification

• 3x CSB HR 1234W

• Software

• Monitor & Control over USB, LAN and Internet (SNMP card optional)

• Features

• Pure sine wave output

  True Double Conversion

  Auto-Restart while AC is recovering

  External battery pack (optional)

  High efficiency up to 96%

  User-friendly and easy-shift

  LCD Output

  Power factor 1.0

  EPO function

  Software management

  Rack/Tower design

• LCD Display

• UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

• Environment

• Humidity: 0-90 % (nin-condensing)

  Temperature: 0-40 grades Celsius

  Noise level: less than 50 dB

• Physical Dimensions

• Dimensions:410 x 438 x 88 mm

  Weight: 15.5 kg
