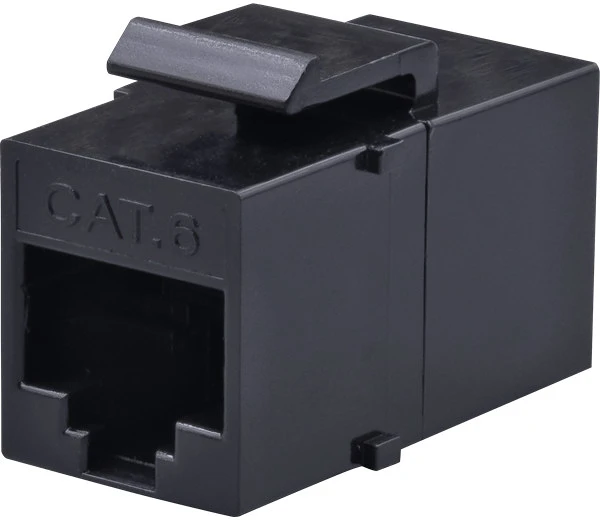

Connector Type Category Cat 6 Connector 2x RJ45(8P8C) Female Ports Shielding Unshielded Material Housing Material Polycarbonate Contact Material Phosphor Bronze with Nickel Plating, thickness = 0.3 mm Contact Surface Material Gold Plating, thickness = 3U (3μin or 0.0762 µm) PCB Material FR-4, thickness = 1.6 mm Electrical Properties Voltage/Current Rating 125 VAC RMS / 1.5 A Insulation Resistance ≥ 1000 MΩ at 500 VDC Contact Resistance ≤ 100 mΩ Dielectric Strength 750 VAC RMS, 60 Hz, 1 minute Mechanical Properties RJ45 Jack ≥ 750 mating cycles Wire Gauge AWG 22-26 Wiring Scheme T568A/T568B Environment Operating Temperature -25°C to 70°C Operating Humidity RH 10% to 90% (non-condensing) Storage Temperature -40°C to 85°C Storage Humidity RH 5% to 96% (non-condensing) General Dimension 14.6 x 19.6 x 29.3 mm (WxHxD) Net Weight 4.5 g (dust cap included) Diagram unit: mm
