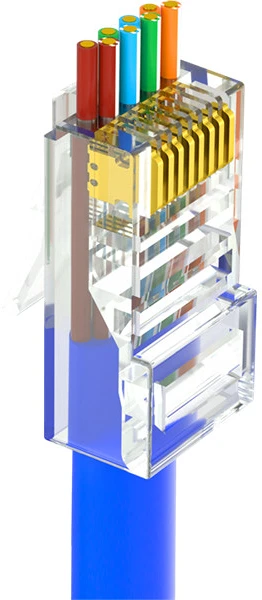

Connector Type Category Cat 6 Type 8P8C (Eight Position, Eight Contact) Shielding Unshielded Material Housing Material Polycarbonate Contact Material Copper Contact Surface Material Gold Plating on Nickel Barrier Gold Plating Thickness 3U (3μin or 0.0762 µm) Electrical Properties Voltage/Current Rating 125 VAC / 1.5 A Insulation Resistance ≥ 500 MΩ Contact Resistance ≤ 20 mΩ Dielectric Withstand Voltage 1500 V DC/AC Peak Mechanical Properties Durability ≥ 1250 mating cycles Wire Gauge 0.85 mm ≤ O ≤ 1.1 mm Environment Operating Temperature -40°C to 70°C Operating Humidity RH 10% to 90% (non-condensing) Storage Temperature -40°C to 80°C Storage Humidity RH 5% to 96% (non-condensing) General Dimension 23x12x8 mm (LxWxH) Net Weight 1.5 g
