| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Interface | Serial |
| Port Style | Cable Adapter |
| Ports | 1 |
| Performance | |
|---|---|
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Parity | Even, Odd, None |
| Serial Protocol | RS-422/485 |
| Stop Bits | 1, 2 |
| Connector(s) | |
| Connector Type(s) | 1 - USB A (4 pin) Male |
| External Ports | 1 - DB-9 (9 pin; D-Sub) Male |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+) Windows® Server 2012, 2008 R2, 2003 Mac OS® 10.x (tested up to 10.11) Linux 2.4.x / 2.6.x |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Physical Characteristics | |
| Cable Length | 6 ft [1.8 m] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 0.9 in [22.1 mm] |
| Product Length | 1.8 in [45 mm] |
| Product Weight | 3.5 oz [100 g] |
| Product Width | 1.6 in [41.5 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 lb [0.2 kg] |
| What's in the Box | |

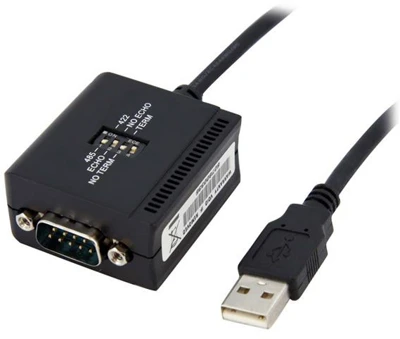

| Included in Package | 1 - USB to RS422/485 Serial Adapter |
| 1 - Driver CD | |
| 1 - Installation Guide |
|
|
