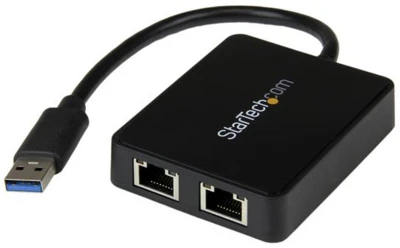

The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook™ computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.
This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.
The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.
| Hardware |
| Bus Type | USB 3.0 |
| Chipset ID | ASIX - AX88179 (2)
VIA - VL811 |
| Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 2 |
| Performance |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Max Distance | 100 m / 330 ft |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Connector(s) |
| Connector Type(s) | 1 - USB Type-A (9 pin) USB 3.0 Female |
| | 1 - USB Type-A (9 pin) USB 3.0 Male |
| | 2 - RJ-45 Female |
| Software |
| OS Compatibility | Windows® 10 (32/64), 8.1 (32/64), 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64)
Windows® Server 2012, 2008 R2, 2003(32/64)
Mac OS® 10.6 - 10.11 - VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 - 3.17.0 |
| Special Notes / Requirements |
| System and Cable Requirements | Available USB port |
| Indicators |
| LED Indicators | 1 - Gigabit Link/Activity (Amber) |
| | 2 - 10/100 Link/Activity (Green) |
| Power |
