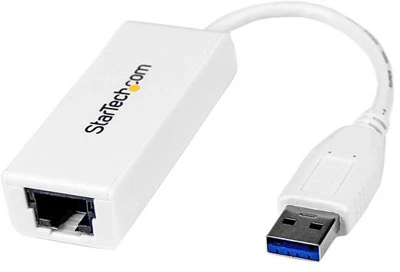

The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.
The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware |
| Bus Type | USB 3.0 |
| Chipset ID | ASIX AX88179 |
| Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 |
| Performance |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Max Distance | 100 m / 330 ft |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Connector(s) |
| Connector Type(s) | 1 - RJ-45 Female |
| | 1 - USB Type-A (9 pin) USB 3.0 Male |
| Software |
| OS Compatibility | Windows® 10 (32/64), 8.1 (32/64), 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64)
Windows® Server 2012, 2008 R2, 2003(32/64)
Mac OS® 10.6 - 10.11 - VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 - 3.17.0 |
| Special Notes / Requirements |
| System and Cable Requirements | Available USB port |
| Indicators |
| LED Indicators | 1 - Activity (Yellow) |
| | 1 - Link (Green) |
| Environmental |
| Humidity | < 80% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Physical... |
