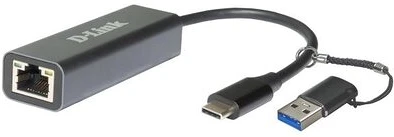

D-link DUB-2315
Hálózati kártya ethernet 2500 mbit/s

Hardware

Chipset

• RTL8156B

Interfaces

• RJ-45 Ethernet port (10/100/1000/2500 Mbps)

• USB Type-C connector

• USB Type-C port (additional adapter)

• USB 3.0 Type-A connector (additional adapter)

LEDs

• Speed 1

- Flashing green - data transmission at 100 Mbps or 1000 Mbps

• Speed 2

- Flashing orange - data transmission at 2.5 Gbps

Functionality

Standards and Functions

• USB 3.0

• USB 2.0

• USB 1.1

• IEEE 802.3 10Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3ab 1000Base-T

• IEEE 802.3bz 2.5GBase-T

• Pause mode

• Wake-on-LAN

System Requirements

Minimum System Requirements

• Available USB Type-C or USB 3.0 Type-A port 1

• Windows 7/8/8.1/10 and above, macOS (OS X 10.8 and above)

Physical Parameters

Dimensions (L x W x H)

• 72.7 ? 24 ? 16.5 mm

Weight

• 0.03 kg

Environmental Conditions

Power input

• From computer (USB bus powered)

Temperature

• Operating: 0 to 40°C

• Storage: -10 to 70°C

Humidity

• Operating: up to 85% non-condensing

• Storage: up to 85% non-condensing

Package Contents

• DUB-2315 network adapter

• USB-A to USB-C adapter

• Quick Installation Guide

• Warranty documents
