RJ45: 1db, USB2.0: 1dbRJ45: 1db, USB2.0: 1db

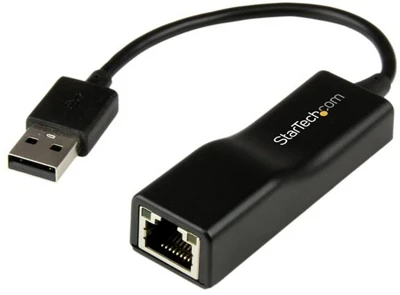

The USB2100 USB 2.0 to 10/100 Mbps Network Adapter lets you add a Fast Ethernet port to your laptop or desktop computer through USB.
This compact USB network adapter offers a dongle design with a built-in cable to avoid cramped connections, making it a perfect solution for adding wired Ethernet connectivity to your desktop without opening the case, or to replace a failed onboard network adapter on your laptop system.
Providing half or full-duplex operation, this USB 2.0 Ethernet adapter supports data transfer rates of up to 200 Mbps. The adapter also supports features such as Wake-on-LAN (WoL) and VLAN tagging for added flexibility.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware |
| Bus Type | USB 2.0 |
| Chipset ID | ASIX - AX88772C |
| Industry Standards | IEEE802.3i, IEEE 802.3u |
| Interface | RJ45 (10/100 Ethernet) |
| Ports | 1 |
| USB Pass-Through | No |
| Performance |
| Auto MDIX | Yes |
| Compatible Networks | 10/100 Mbps |
| Full Duplex Support | Yes |
| Max Distance | 100 m / 330 ft |
| Maximum Data Transfer Rate | 200 Mbps (Ethernet - Full-Duplex) |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| Connector(s) |
| Connector Type(s) | 1 - USB A (4 pin) Male |
| | 1 - RJ-45 Female |
| Software |
| OS Compatibility | Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64)
Windows Server® 2012, 2008 R2, 2003(32/64)
Mac OS® 10.x (Tested up to 10.11)
Google Chrome OS™
Linux 2.6.x / 3.x (Tested up to 3.5) |
| Special Notes / Requirements |
| System and Cable Requirements | Available USB port |
| Indicators |
| LED Indicators | 1 - Link |
| | 1 - Activity |
| Power |
| Power Source | USB-Powered |
| Environmental |
