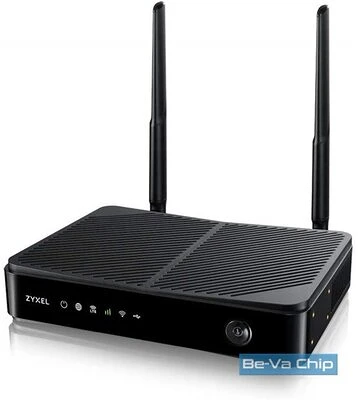

Zyxel LTE3301-PLUS-EU01V1F
Lte3301-plus ac1200 dual band 4g lte-a indoor router

• Standard compliant: 3GPP Release 10 Cat. 6
• Support LTE band : 1/3/5/7/8/20/28/38/40/41
• 2 Carrier Aggregation combination:

  • B1+B1/B5/B8/B20/B28
  • B3+B3/B5/B7/B8/B20/B28
  • B7+B5/B7/B8/B20/B28
  • B38+B38; B40+B40; B41+B41
• Peak data rate:

  • 300 Mbps DL within 40 MHz bandwidth (CA)
  • 50 Mbps UL within 20 MHz bandwidth

UMTS Air Interface

• Standard compliant: WCDMA band 1/3/5/8
• Supported frequency: HSPA+/UMTS 2100/1800/900/850 MHz (band 1/3/5/8)
• WCDMA : 2100/1800/900/850 MHz
• HSPA+ downlink data rate up to 42 Mbps
• HSUPA uplink data rate up to 5.76 Mbps

WiFi Air Interface

• Wireless standard (concurrent)

  • IEEE802.11 b/g/n, 2.4 GHz
  • IEEE802.11 a/n/ac, 5 GHz
• WiFi 2.4 GHz antenna: 2x2 internal antennas up to 3 dBi
• WiFi 5 GHz antenna: 2x2 internal antennas up to 5 dBi

Hardware Interface

• Four GbE RJ-45 LAN ports. LAN1 can be configured as Ethernet WAN port
• LEDs:

  • Power indication
  • Internet status
  • LTE/3G signal strength
  • WiFi status
  • USB status
• One WPS & WiFi On/Off button
• One 3FF micro SIM card socket
• One Reset to default button
• One Power On/Off button
• One DC Power jack
• One USB 2.0 host port
• Two external LTE/3G antenna SMA connector
