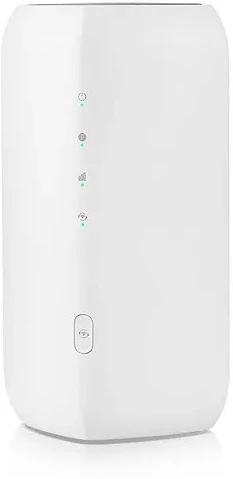

Zyxel FWA505V2-EU0102F
4G/5G Modem + Wireless Router Dual Band AX3000 2xLAN(1000Mbps) + 1xUSB + 1

ZYXEL 4G/5G Modem + Wireless Router Dual Band AX3000 2xLAN(1000Mbps) + 1xUSB + 1 év Nebula Pro License, FWA505V2-EU0102F System specifications IP networking Supports IPv4/IPv6 dual stack (NDP IPv6) DHCP Client/server Virtual Private Network (VPN) pass-through Supports NAT/NAPT Supports DMZ Multiple APNs Supports port forwarding Routing Supports bridge and router modes Supports remote management under bridge mode Static/dynamic route setting IP firewall DoS attack detection Supports SPI Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping) Filters LAN MAC address Filters LAN IP address Management Supports local/remote device management and firmware upgrade via TR-069 and web GUI PIN/PUK management APN management Operating frequency band selection CLI/SSH (local and remote SSH access) Supports UPnP IGD Supports web server API to support APPs Supports Zyxel Nebula app (iOS and Android) for easy installation and local management WLAN feature Auto channel selection WiFi Protected Setup (WPS) WiFi Multimedia (WMM) WiFi-enabled devices: up to 64 Security: none, WPA2-Personal, WPA/WPA2, WPA3 MAC address filtering with 64 address supported Multiple SSIDs/hide SSIDs WLAN scheduling Hardware specifications 5G NR interface 3GPP Release 15 standard-compliant Supports DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78 Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM ? Supports both NSA and SA modes FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78 TDD: n38/n40/n41 ? Data rates: 5G SA: DL 4.7 Gbps; UL 2.5 Gbps* 5G NSA: DL 3.7 Gbps; UL 1.5 Gbps* ? Output power: Class 2 (26 dBm) for 5G NR n41/n77/n78 Class 3 (23 dBm) for rest FDD/TDD NR bands 4G LTE interface 3GPP UE Category 19 standard-compliant Supports DL 4×4 MIMO: B1/B3/B7/B38/B40/B41/B42/B43 Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM ? Supports frequencies: LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41/B42/B43 ? Peak data rates: Max. DL 1.6 Gbps/UL 211 Mbps* ? Output power: Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands WiFi air Interface Wireless standard: IEEE 802.11b/g/n/a/ac/ax ? Wireless speeds: Link rates up to 1,774 Mbps* for 802.11ax DBDC ? Internal WiFi antenna: Dual-band & concurrent 2x2 + 2x2 ? WiFi antenna gain: ≤ 4 dBi for 2.4 GHz ≤ 5 dBi for 5 GHz 5G/4G antennas Two TS9 connectors for external antennas** Four embedded omni-directional antennas ? Antenna Spec (Peak Gain) 700 MHz ~ 960 MHz: 2 dBi 1.4 GHz ~ 2.7 GHz: 5 dBi 3.3 GHz ~ 4.2 GHz: 5 dBi Hardware interface Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port Two external antenna connectors (TS9 type) One 3FF/Micro SIM card slot One power on/off button One WPS/WiFi on/off button One reset button One Int/Ext antenna switch One USB 2.0 host port for file sharing ? LED indicators: Power indication Signal strength Internet connection status WiFi AP status WPS status Power consumption 24 W (peak) Physical specifications Item Dimensions (WxDxH) 103 x 103 x 222 mm (4.06” x 4.06” x 8.74”) Weight 1145 g (2.53 lb.) Packing Dimensions (WxDxH) 252 x 171 x 110 mm (9.92” x 6.73” x 4.33”) Weight 2450 g (5.40 lb.) Environmental specifications Operating Temperature -10°C to 40°C (14°F to 104°F) Humidity 10% to 90% RH (non-condensing) Storage Temperature -30°C to 70°C (-22°F to 158°F) Humidity 0% to 95% (non-condensing) Certifications CE NCC BSMI NBTC Certification Package contents Power adapter Ethernet cable 1.8 m 8P8C All specifications are subject to change without notice. * The maximum data rates is a theoretical value. The actual data rates depend on the network environment. ** The TS9 connectors support 698 ~ 4200 MHz frequency.
