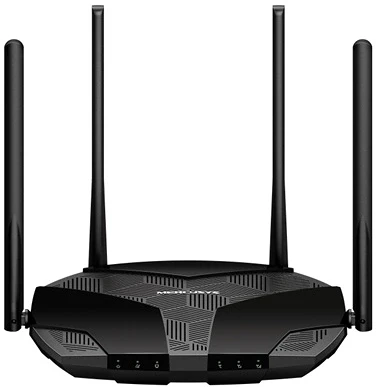

Tp-link MB235-4G
Mercusys - 4g+ cat6 ac1200 wireless dual band gigabit router

MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(1000Mbps) +3xLAN(1000Mpbs), MB235-4G Network Type ? EU: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40 (2600/2300 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) ? Wi-Fi Class ? AC1200 ? Wi-Fi (2.4 GHz) ? 300 Mbps ? Wi-Fi ( 5 GHz) ? 867 Mbps ? Wireless Standards (Invaild) ? IEEE 802.11ac/a/b/g/n ? Frequency ? 5 GHz, 2.4 GHz ? Reception Sensitivity ? 11g 6Mbps: -95dBm 11g 54Mbps: -77dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm 11a 6Mbps: -92dBm 11a 54Mbps: -75dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -65dBm 11ac VHT80 MCS9: -61dBm ? Transmission Power ? 2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) ? Wireless Security ? WPA-PSK / WPA2-PSK / WPA3-SAE ? Wireless Functions ? smart connect WPS Wireless Schedule Others Package Contents ? 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB235-4G) Power Adapter RJ45 Ethernet Cable Quick Installation Guide ? Environment ? Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing Software Operation Mode ? 3G/4G Router Wireless Router ? Cellular Mode ? 4G Mode 3G Mode ? Cellular APN ? Data Roaming Band Search Network Search Profile Create APN Settings ISP File Upgrade PIN Management ? WAN Mode ? Dynamic IP Static IP PPPoE PPTP L2TP ? NAT Forwarding ? ALG Virtual Server Port Triggering UPnP DMZ ? Protocols ? IPv4, IPv6 ? Data Settings ? Data Statistics Data Limit ? Parental Controls ? Time Control Website Filtering ? Guest Network ? 2.4 GHz Guest Network 5 GHz Guest Network ? DHCP ? Server DHCP Client List Address Reservation ? DDNS ? MERCUSYS DDNS DynDns NO-IP ? SMS ? Inbox New Message Outbox Drafts ? QoS ? √ ? Security ? IPv4 SPI Firewall Access Control IP & MAC Binding IPv6 Firewall ? System Settings ? Time & Language LED Control Diagnostics Firmware Upgrade Backup&Restore Reboot Administration System Log CWMP Settings ? Device Management ? MERCUSYS APP Web GUI ? System Language ? English Deutsch Espanol Français Italiano Polski ??????? ? TR-069 ? √ Hardware Dimensions ? 209 × 171.9 × 41.7 mm (8.2 × 6.8 × 1.6 in) ? Interfaces ? 1× Gigabit? LAN/WAN Port 3× Gigabit LAN Ports 1× Nano SIM Card Slot ? Antenna ? 2× External Detachable 4G LTE Antennas,? 2× External Wi-Fi Antennas ? Button ? WPS, Reset Button ? External Power Supply ? 12V/1A ? LED ? 1× Power 1× Internet 1× LAN 3× Signal ? LTE Standard ? Cat 6 300/50Mbps DL/UL Wireless
