AX3000 Dual-Band Wi-Fi 6 Router SPEED: 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz SPEC: 4× Antennas,1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port+3* Gigabit LAN Ports, 1xUSB 3.0 Port, 1024-QAM, OFDMA, HE160 FEATURE: Tether App, WPA3, Access Point Mode, IPv6 Supported, IPTV, Beamforming, Smart Connect, Airtime Fairness, VPN Server, DFS, Cloud Support, HomeShield, Onemesh

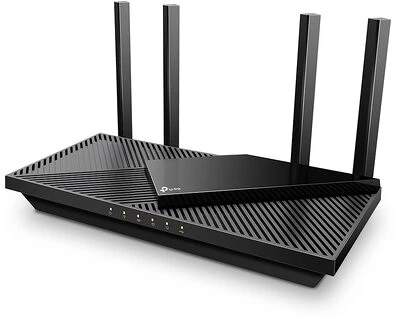

Archer AX55 Pro AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port
- Faster Dual-Band AX3000 WiFi : Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.
- 2.5G Multi-Gigabit Port : 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
- Maximized Coverage : Four high-gain antennas equipped with Beamforming ensure vast coverage.
- Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices. ‡
- VPN Client Supported : Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
- TP-Link HomeShield : Enhanced security defends against the latest cyber threats. △
- TP-Link OneMesh Supported : Flexibly Create Whole Home WiFi with Archer AX55 Pro by adding a OneMesh supported Range Extender.
- Compatible with Alexa : Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
| WIRELESS |
| Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX3000 • 5 GHz: 2402 Mbps (802.11ax, HE160) • 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses • 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High • Dual-Band Allocate devices to different bands for optimal performance
• OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness Improves network efficiency by limiting excessive occupation
• DFS Access an extra band to reduce congestion
• 4 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| HARDWARE |
| Ethernet Ports | • 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port
Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi/WPS Button Power On/Off Button Reset Button |
| Power | • 12 V/ 2 A (US Version) • 12 V/ 1.5 A (EU Version) |
| SECURITY |
| WiFi Encryption | • WPA3* • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| SOFTWARE |
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls • Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage Check Web Emulator> |
| OTHER |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power | • CE: • FCC: |
| WiFi Reception Sensitivity | • 2.4 GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm • 5 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm, 11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm |
| PHYSICAL |
| Dimensions (W×D×H) | 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
| Package Contents | • Wi-Fi Router Archer AX55 Pro • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
