AX5400 Dual-Band Wi-Fi 6 Router SPEED: 574 Mbps at 2.4 GHz + 4804 Mbps at 5 GHz SPEC: 6× Antennas, 1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port+3* Gigabit LAN Ports, USB 3.0 Port, 1024-QAM, OFDMA, HE160 FEATURE: Tether App, WPA3, Access Point Mode, IPv6 Supported, IPTV, Beamforming, Smart Connect, Airtime Fairness, MU-MIMO, VPN Server, DFS, Cloud Support, HomeShield, Onemesh

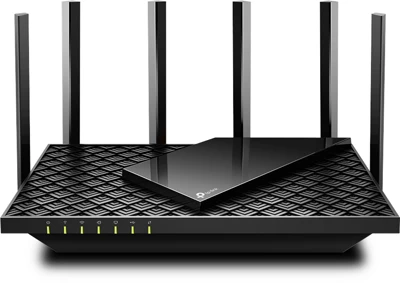

Archer AX72 Pro
New
AX5400 Dual-Band Gigabit Wi-Fi 6 Router
- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time. †
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
- Connect 100+ Devices § – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput. ‡**
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
- More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
- USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with the Tether app.
| WIRELESS |
| Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX5400
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses 6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity | High Dual-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth |
| Working Modes | Router Mode
Access Point Mode |
| HARDWARE |
| Processor | 1 GHz Dual-Core CPU |
| Ethernet Ports | • 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server |
| Buttons | Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button |
| Power | 12 V ⎓ 2.5 A |
| SECURITY |
| WiFi Encryption | WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN
• PPTP
• L2TP |
| VPN Client | • OpenVPN
• PPTP
• L2TP |
| SOFTWARE |
| Protocols | IPv4
IPv6 |
| Service Kits | HomeShield
Learn More> |
| OneMesh™ | OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding | Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server |
| IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP | Address Reservation
DHCP Client List
Server |
| DDNS | TP-Link
NO-IP
DynDNS |
| Management | Tether App
Webpage
|
| OTHER |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power | CE:
FCC:
|
| WiFi Reception Sensitivity | 2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm |
| PHYSICAL |
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm) |
| Package Contents | Wi-Fi Router Archer AX72
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
