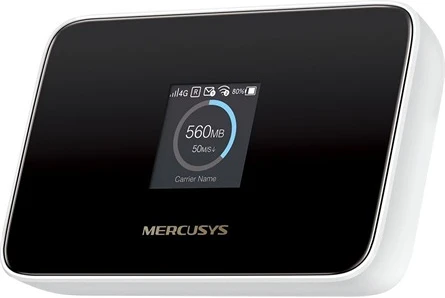

Mercusys MT115
Ax300 wi-fi 4g/lte router

300Mb/s, IEEE 802.11a/b/g/n/ax (Wi-Fi 6), USB-C: 1db, SIM kártya foglalat, 4G/LTE, energiafelhasználás: 5W, akkumulátoros működés, fehér, 2700mAh300Mb/s, IEEE 802.11a/b/g/n/ax (Wi-Fi 6), USB-C: 1db, SIM kártya foglalat, 4G/LTE, energiafelhasználás: 5W, akkumulátoros működés, fehér, 2700mAhGarancia: 3 Év Network Type

Support 4G/3G network

FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 ΜHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 ΜHz)

Wireless Standards

IEEE 802.11ax/b/g/n 2.4 GHz

Frequency

2.4 GHz

Reception Sensitivity

11b 11Mbps: -87.5dBm
11g 54Mbps: -74dBm
11n HT20 MCS7: -71dBm
11n HT40 MCS7: -69dBm

Transmission Power

<20dBm

Wireless Security

Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast

Wireless Dimensions

111.1 × 71.6 × 24.2 mm

(4.37 × 2.82 × 0.95 in)

Interfaces

1 USB-C port for power supply
1 Nano SIM card slot

Button

Power Button, Reset Button, Menu Button

External Power Supply

5V/1A

Antenna Type

Internal Antennas

Data Rates

4G LTE Speed: DL: 150 Mbps, UL: 50 Mbps

WiFi Speed: 287 Mbps on 2.4 GHz

Screen Display

1.44 inch TFT

Hardware DHCP

Server, Client, DHCP Client List

Software Network Services Enabled by Default

Web Server

Manage and configure device through web

• Port: 80/443   Protocol: HTTP/HTTPS

DHCP/DHCPv6

IP address assignment

• Port: 67/547   Protocol: UDP

DNS

DNS

• Port: 53   Protocol: UDP

Dropbear

Manage and configure device through app

• Port: 20001   Protocol: SSH

App management

Manage and configure device through app

• Port: 20002   Protocol: TMP

Package Contents

Mobile Wi-Fi MT115
USB-C Cable
Quick Installation Guide

Environment

Operating Temperature: 0°C~35°C (32°F ~95°F)
Storage Temperature: -10°C~40°C (14°F ~104°F)
Operating Humidity: 0%~75% non-condensing
Storage Humidity: 0%~65% non-condensing

System Requirements

Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
