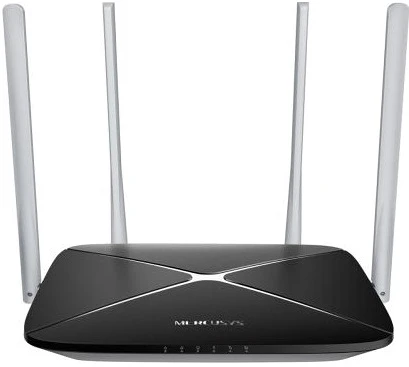

Mercusys MB135-4G
Ac1200 dual-band wi-fi 4g/lte router

1167Mb/s, IEEE 802.11a/b/g/n/ac (Wi-Fi 5), WAN (100Mb/s): 1 port, LAN (100Mb/s): 4 port, SIM kártya foglalat, 4G/LTE, antennák száma: 4db, energiafelhasználás: 12W, fekete-szürke1167Mb/s, IEEE 802.11a/b/g/n/ac (Wi-Fi 5), WAN (100Mb/s): 1 port, LAN (100Mb/s): 4 port, SIM kártya foglalat, 4G/LTE, antennák száma: 4db, energiafelhasználás: 12W, fekete-szürkeGarancia: 3 Év Network Type

EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 ΜHz)

TDD-LTE: B40 (2300 MHz)

HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

Wi-Fi Class

AC1200

Wi-Fi (2.4 GHz)

300 Mbps

Wi-Fi ( 5 GHz)

867 Mbps

Wireless Standards

IEEE 802.11ac/a/b/g/n

Frequency

5 GHz, 2.4 GHz

Reception Sensitivity

11g 6Mbps: -95dBm

11g 54Mbps: -77dBm

11n HT20 MCS7: -74dBm

11n HT40 MCS7: -71dBm

11a 6Mbps: -92dBm

11a 54Mbps: -75dBm

11ac VHT20 MCS8: -70dBm

11ac VHT40 MCS9: -65dBm

11ac VHT80 MCS9: -61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

smart connect
WPS
Wireless Schedule
Wireless Clients Statistics

Others Package Contents

AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Software Operation Mode

3G/4G Router
Wireless Router

Cellular Mode

4G Preferred
4G Only
3G Only

Cellular APN

Data Roaming
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management

WAN Mode

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

NAT Forwarding

ALG
Virtual Server
Port Triggering
UPnP
DMZ

Protocols

IPv4, IPv6

Data Settings

Data Statistics
Data Limit

Parental Controls

Time Control
Website Filtering

Guest Network

2.4 GHz Guest Network
5 GHz Guest Network

DHCP

Server
DHCP Client List
Address Reservation

DDNS

MERCUSYS DDNS
DynDns
NO-IP
