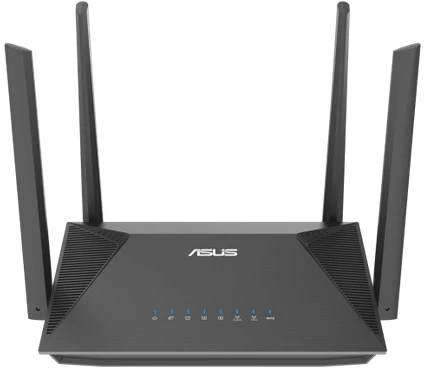

Asus RT-AX52
Asus ax1800 dual band wifi 6 router

Model

RT-AX52

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

External antenna x 4

Transmit / Receive

2.4GHz 2x2
5GHz 2x2

Processor

1.3GHz dual-core processor

Memory

128 MB Flash
256 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Access Point, AiMesh Node, Repeater, Router

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1
WAN x 1
LAN x 3
2.4G x 1
5G x 1
WPS x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A current

Package Content

.RT-AX52
.RJ45 Ethernet Cable
.Power Adapter
.Quick Start Guide
.Warranty Card

Product Weight (g)

298g

Product Dimensions

192 x 126.3 x 47.5 mm (WxDxH)

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

Security

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP

Traffic Control

• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port triggering
DMZ
DDNS

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)

Wireless

UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
