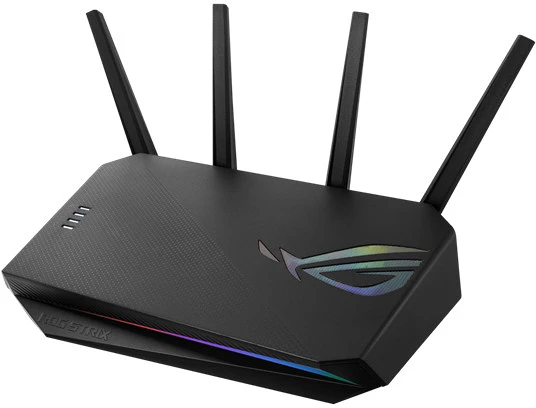

Asus GS-AX5400
Asus rog strix dual band wifi 6 gaming router

Model Name

GS-AX5400

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IPv4

IPv6

Product Segment

AX5400 ultimate AX performance : 4804 Mbps+ 574 Mbps

AX technology

Yes

Data Rate

2.4GHz N: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 500Mbps

5GHz AC: 4x4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps

2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps

5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 4

Transmit/Receive

2.4 GHz 2 x 2

5 GHz 4 x 4

Processor

1.5 GHz tri-core processor

Memory

256 MB Flash

512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for Gigabits BaseT for WAN x 1

RJ45 for Gigabits BaseT for LAN x 4

USB 3.2 Gen 1 x 1

Button

WPS Button

Reset Button

Power Switch

LED Indicator

Power x 1

2.4G x 1

5G x 1

WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 1.75 A current

Package content

GS-AX5400 Router

RJ-45 cable

Power adapter

Warranty card

Quick start guide

Product Weight (g)

701.3 g

AiMesh

AiMesh : Yes

Primary AiMesh router : Yes

AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : Yes

ROG_First : Yes

OpenNAT (Game Profile) : Yes

Gaming port : Yes

Alexa

Support Alexa skill : Yes

AiProtection

AiProtection : AiProtection Pro

Router Security Assessment : Yes

Malicious site blocking : Yes

Two-Way IPS : Yes

Infected Device Prevention and Blocking : Yes

Parental Control

Parental Control : Yes

Parental Control Customized Internet schedule : Yes

Traffic Control

Adaptive QoS : Yes

Bandwidth Monitor : Yes

Bandwidth limiter : Yes

Maximum Bandwidth limiter rule : 32

Traditional QoS : Yes

Maximum Traditional QoS rule : 32

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Traffic Analyzer : Yes

Traffic analysis period : Daily, Weekly, Monthly

Website history : Yes

Wireless

IPv6 : Yes

Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

UTF-8 SSID : Yes

Guest Network : Yes

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

WPS : Yes

Wi-Fi MAC address filter : Yes

Maximum MAC filters : 64

Wireless scheduler : Yes

Wi-Fi Radar : Yes

Airtime fairness : Yes

RADIUS Server : No

Universal beamforming : Yes

WAN

Explicit beamforming : Yes

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : Yes

WAN Aggregation : Yes

3G/4G LTE dongle : Yes

Android tethering : Yes

Port forwarding : Yes

Maximum port forwarding rule : 64

Port triggering : Yes

Maximum port triggering rule : 32

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

LAN

DHCP Server : Yes

IGMP snooping : Yes

IPTV : Yes

LAN Link Aggregation : Yes

Manually assign IP address : Yes

Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : Yes
